Compatibility:
TEOS, NEO Modular, NEO HC Monoblock, NEO HC Modular, NEO HC Monoblock
Relevant Dimension:
Enclosure Width (W)
Material:
DX51 galvanized sheet steel
Surface Finish:
Nano coating with RAL 7012 powder coating application
Supply Includes:

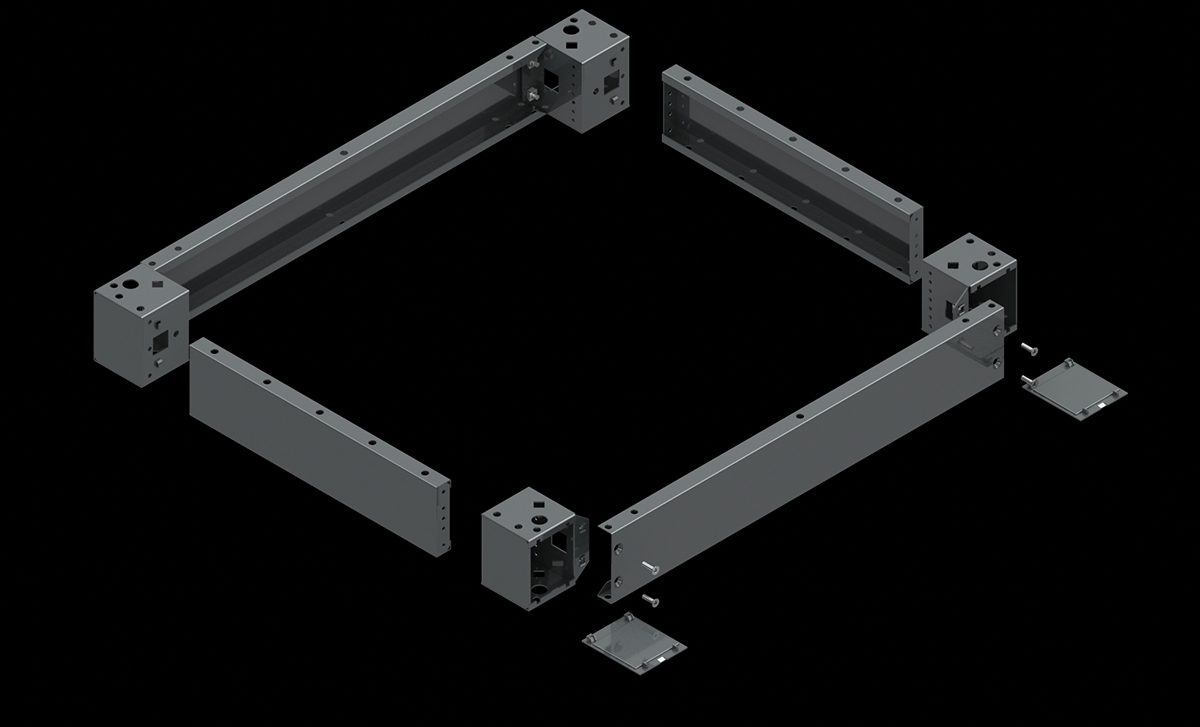

2 pcs of 100 mm height modular plinth front and rear covers, and plinth assembly components
Required:

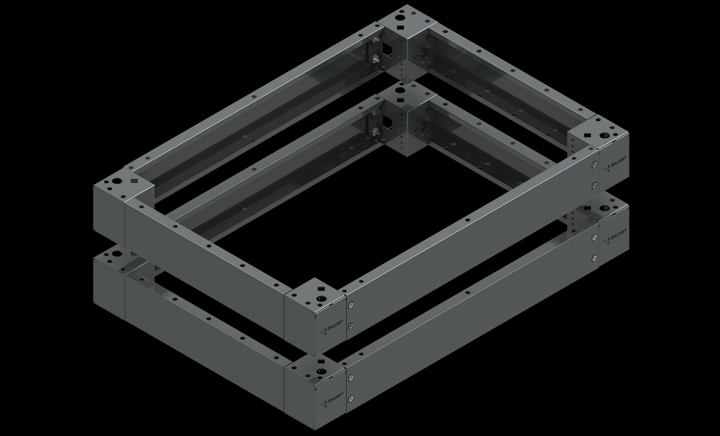

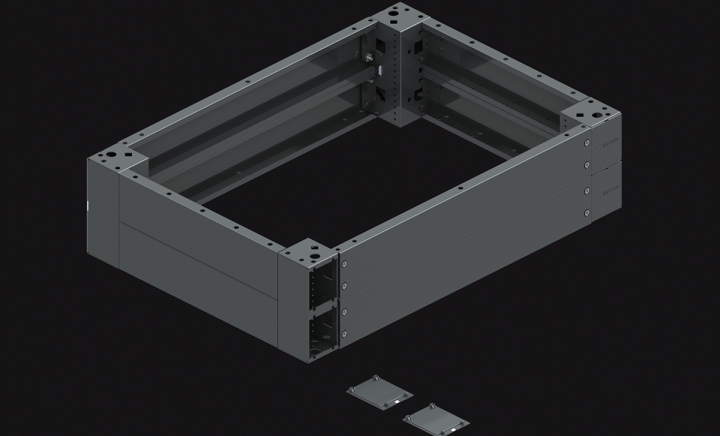

For 200 mm plinth height, 2 sets are required.
| | | | Product Code | Width(W) |
|---|
| 2D DXF | 3D STEP | 709.100 | 1000 |
| 2D DXF | 3D STEP | 709.120 | 1200 |
| 2D DXF | 3D STEP | 709.140 | 400 |
| 2D DXF | 3D STEP | 709.160 | 600 |
| 2D DXF | 3D STEP | 709.170 | 700 |
| 2D DXF | 3D STEP | 709.180 | 800 |
