Compatibility:
All TEOS and NEO Enclosures
Description:

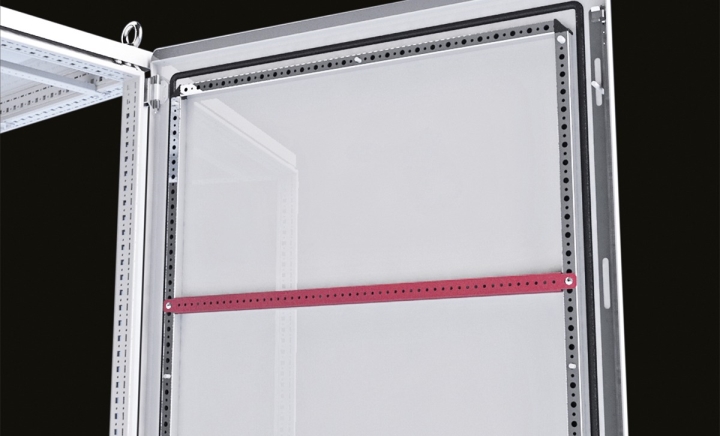

Mounted on door support profiles inside the enclosure door. Used for cable routing or mounting small devices. Compliant with IEC 62208 standards.
Relevant Dimension:
Enclosure Width (W)
Material:
DC01 DKP Steel
Surface Finish:
Zinc Coating
Supply Includes:
1 profile with connection bolts
| | | | Product Code | Width(W) |
|---|
| 2D DXF | 3D STEP | 997.104 | 400 Single Door / 800 Double Door |
| 2D DXF | 3D STEP | 997.111 | 1000 Single Door / - |
| 2D DXF | 3D STEP | 997.113 | 600 Single Door / 1200 Double Door |
| 2D DXF | 3D STEP | 997.114 | 800 Single Door / - |
| 2D DXF | 3D STEP | 997.115 | - / 1000 Double Doors |
| 2D DXF | 3D STEP | 997.116 | 700 Single Door / - |
