NEW STAINLESS STEEL FLOOR STANDING ENCLOSURE WITH NE MODULAR

In industrial facilities exposed to high corrosion, such as food, beverage, chemical, petrochemical, water treatment, wastewater treatment, maritime, offshore, and energy industries, durability and compliance with standards are the most critical expectations.

At this point, we offer you our stainless steel floor standing enclosure, manufactured in accordance with IEC 62208 and UL 508A standards.

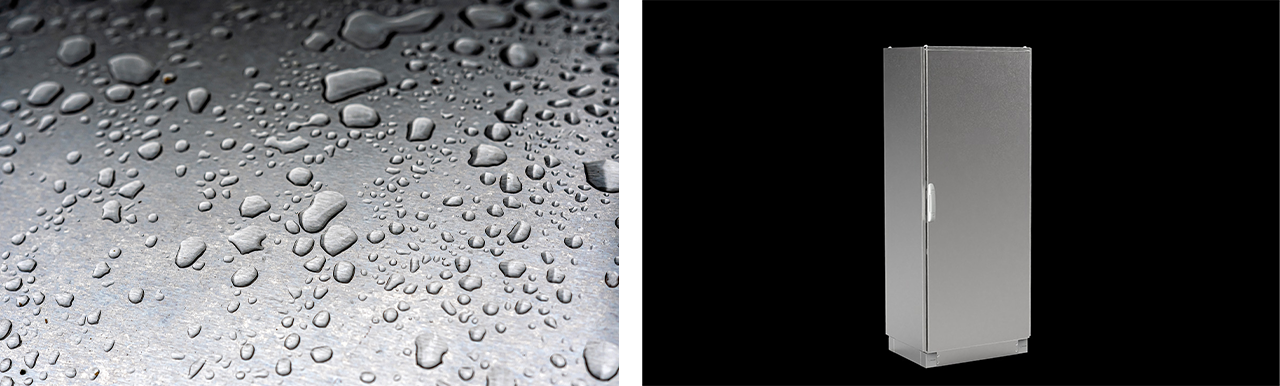

High Corrosion Resistance

• High-quality AISI 304 stainless steel or AISI 316L (optional)
• Stainless steel hinges, bolts, and hardware
• Painted zamak lock die casted zinc AISI 316 handle lock (optional)

High Protection Against External Factors (IP66 / NEMA 4X)

• High protection against high-flow liquids, steam, and humid environments

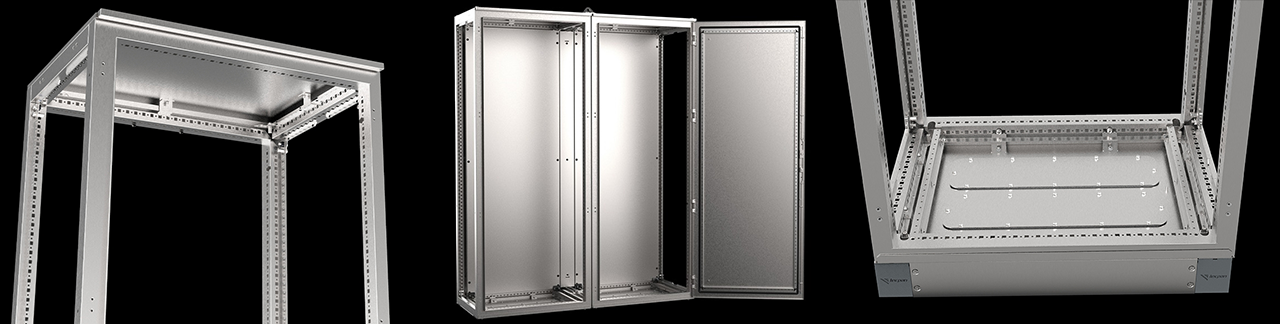

• Welded enclosure construction
• Polyurethane molded gasket compatible with stainless steel applied on all doors
• Top and bottom doors pulled inward to increase gasket pressure
• Fully insulated cable entry plates

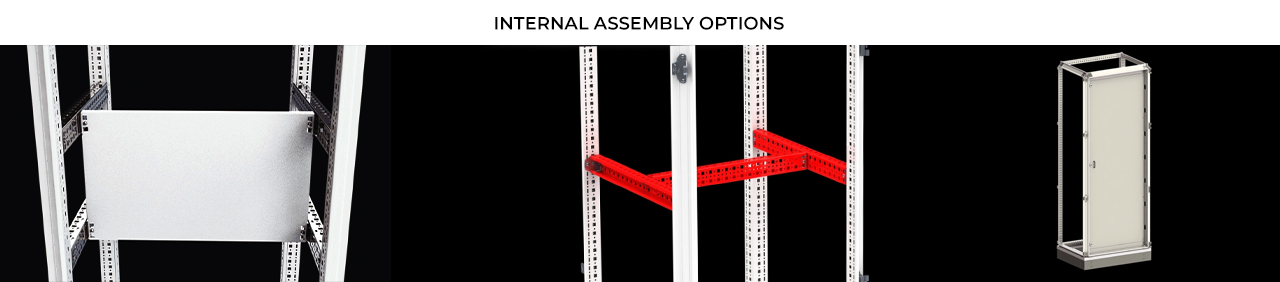

• Intermediate plate application for panel assembly in accordance with IP66 protection class
• Single-door applications: IP66 / NEMA 4X protection class

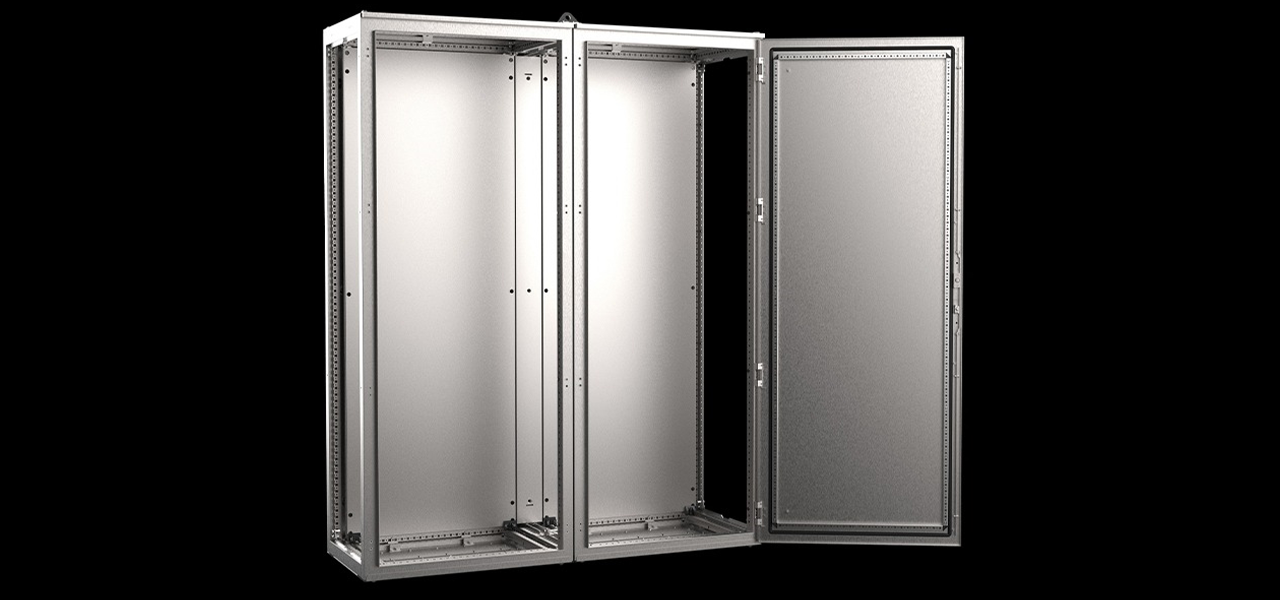

• Double-door applications: IP54 / NEMA 12 protection class

Flexibility, Modularity, and Accessory Compatibility

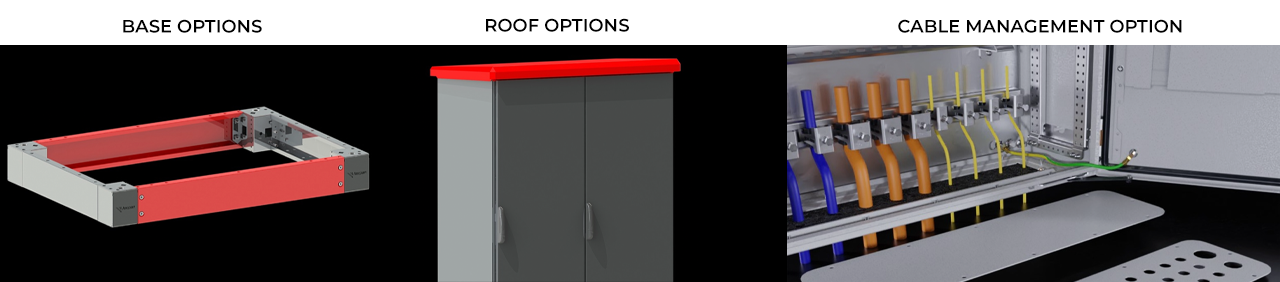

• The enclosure structure is based on the NEO Modular design, ensuring compatibility with all accessories
• Can be joined side by side to achieve the desired modularity
