Compatibility:
All enclosures
Description:

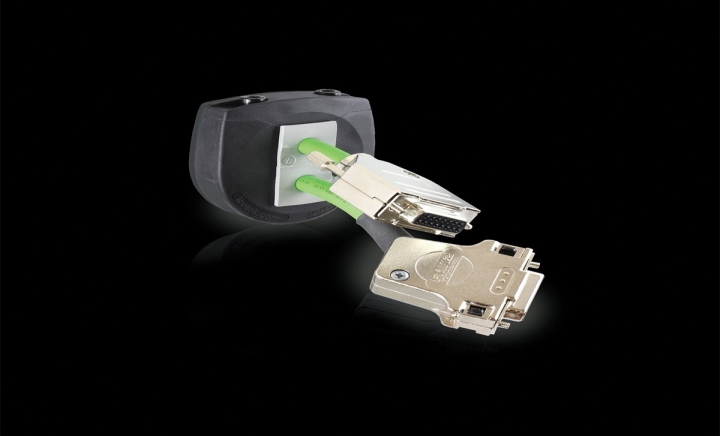

Detachable compression-type cable gland holder. Allows pre-assembled cables with connectors to be properly secured when entering the enclosure. Suitable for cable diameters from 1 to 16 mm. IP66 protection according to IEC EN 60529 / NEMA 4X protection.
Relevant Dimension:
All sizes
Material:
Polypropylene (PP), Gasket: Elastomer, UL94 V0
Surface Finish:
—
Supply Includes:
Each product code includes 1 pc socket holder.
Required:
For M25/1 and M32/1 holders, 1 pc “Gland Insert” is required; for M50/2 holder, 2 pcs are required.
| | | | Product Code | Model |
|---|
| 2D DXF | 3D STEP | 973.502 | M25/1 |
| 2D DXF | 3D STEP | 973.503 | M32/1 |
| 2D DXF | 3D STEP | 973.504 | M50/2 |
