Compatibility:
DM-M and DM-L enclosures
Description:

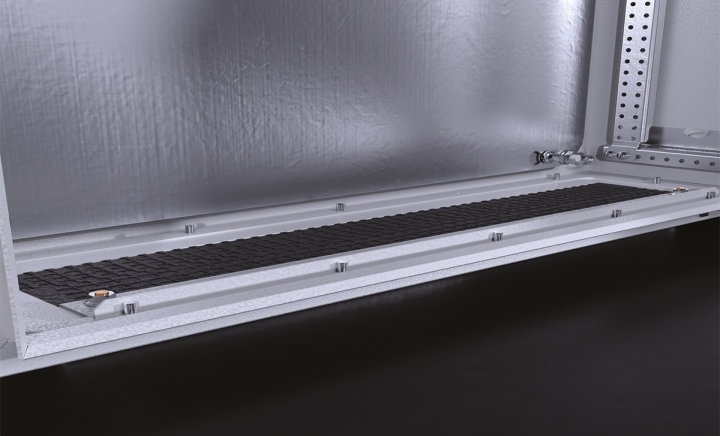

Used to provide a dual-sided foam-sealed cable entry over the bottom cover openings of DM enclosures. Ensures protection against dust during cable entry. IP4X protection according to IEC EN 60529.
Relevant Dimension:
Enclosure Width (W) and Depth (D)
Material:
DC01 Cold-Rolled Sheet Steel / Epidyem Foam
Surface Finish:
Nano coating with RAL 7012 powder coating application
Supply Includes:
1 pc bottom cover, insulation foam, and assembly parts
Note:
For enclosures with 800 mm, 1000 mm, and 1200 mm widths, 2 pcs bottom covers are required.
| | | | Product Code | Width(W) | Depth(D) |
|---|
| 2D DXF | 3D STEP | 973.007 | 300 | 210 |
| 2D DXF | 3D STEP | 973.008 | 400 | 210 |
| 2D DXF | 3D STEP | 973.008 | 400 | 260 |
| 2D DXF | 3D STEP | 973.008 | 800 | 260 |
| 2D DXF | 3D STEP | 973.008 | 800 | 210 |
| 2D DXF | 3D STEP | 973.009 | 800 | 300 |
| 2D DXF | 3D STEP | 973.009 | 800 | 400 |
| 2D DXF | 3D STEP | 973.009 | 400 | 300 |
| 2D DXF | 3D STEP | 973.010 | 500 | 210 |
| 2D DXF | 3D STEP | 973.010 | 500 | 260 |
| 2D DXF | 3D STEP | 973.011 | 500 | 300 |
| 2D DXF | 3D STEP | 973.011 | 1000 | 300 |
| 2D DXF | 3D STEP | 973.011 | 1000 | 400 |
| 2D DXF | 3D STEP | 973.012 | 600 | 210 |
| 2D DXF | 3D STEP | 973.012 | 600 | 260 |
| 2D DXF | 3D STEP | 973.013 | 600 | 300 |
| 2D DXF | 3D STEP | 973.013 | 600 | 400 |
| 2D DXF | 3D STEP | 973.013 | 1200 | 300 |
| 2D DXF | 3D STEP | 973.013 | 1200 | 400 |
