Compatibility:
KT and DM enclosures
Description:

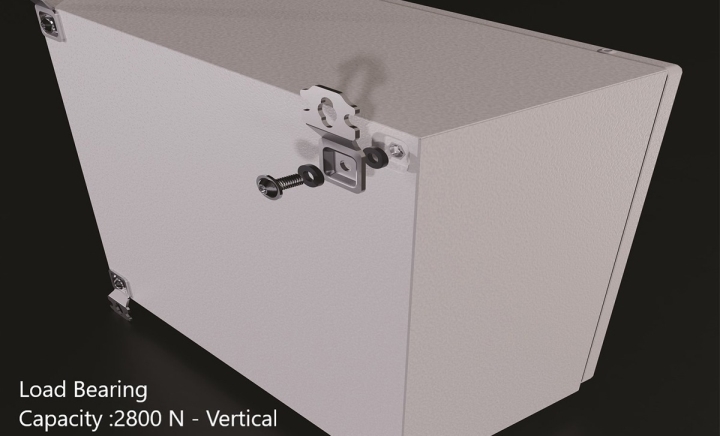

Used for wall mounting. Can be installed in both vertical and horizontal positions. Allows the enclosure to be mounted onto pre-installed wall bolts using a hanging method. Can be mounted externally to the enclosure. Complies with IEC 62208 and UL 50E standards. Load capacity: 2800 N per bracket in vertical mounting, 1500 N per bracket in horizontal mounting.
Relevant Dimension:
Compatible with all enclosure sizes
Material:
DC01 Sheet Steel
Surface Finish:
Zinc plating
Supply Includes:
4 pcs wall brackets
| | | | Product Code |
|---|
| 2D DXF | 3D STEP | 971.300 |
