Compatibility:
DM-M enclosures
Description:

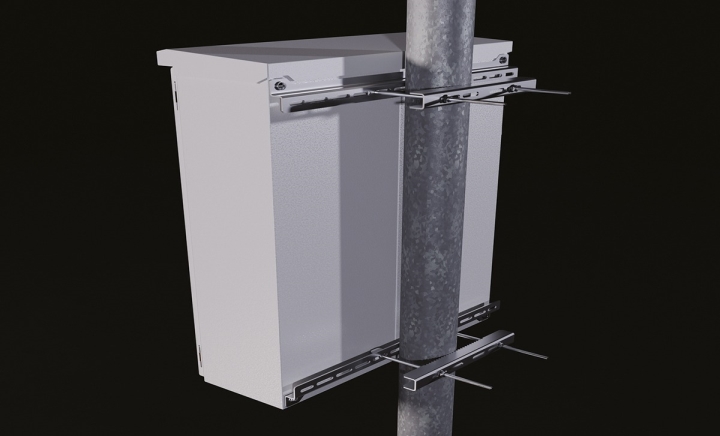

Used to mount the enclosure onto poles or structural profiles. Mounting on round poles: Ø40 mm (min) – Ø190 mm (max) Mounting on square poles: 50 mm (min) – 150 mm (max) Complies with IEC 62208 and UL 50E standards.
Relevant Dimension:
Enclosure Width (W)
Material:
DX51 Galvanized Sheet Steel
Surface Finish:
Untreated surface
Supply Includes:
2 pcs enclosure mounting rails and 2 pcs clamp connections
| | | | Product Code | Width(W) |
|---|
| 2D DXF | 3D STEP | 973.003 | 300 |
| 2D DXF | 3D STEP | 973.004 | 400 |
| 2D DXF | 3D STEP | 973.005 | 500 |
| 2D DXF | 3D STEP | 973.006 | 600 |
