Compatibility:
All enclosures
Description:

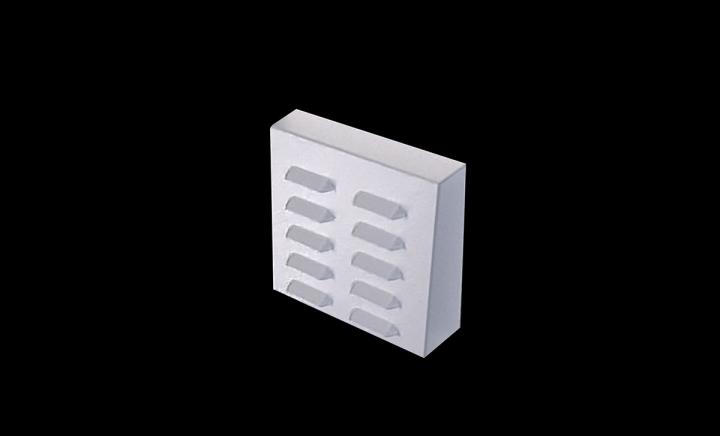

Weather protection system providing rain protection for enclosures used outdoors. Ventilation filters or fan filters can be installed inside. Provides IPX3 protection according to IEC EN 60529.
Relevant Dimension:
Corresponding enclosure dimensions
Material:
DX51 galvanized sheet steel
Surface Finish:
Nano coating with RAL 7035 powder coating application
Supply Includes:
1 pc rain canopy and enclosure mounting parts
Required:
Ventilation filters must be used inside the rain canopy.
| | | | Product Code | Filter Compliance | Canopy Size |
|---|
| 2D DXF | 3D STEP | 973.105 | 105x105mm | 155x145mm |
| 2D DXF | 3D STEP | 973.150 | 150x150mm | 200x190mm |
