Compatibility:
KT or DM enclosures
Description:

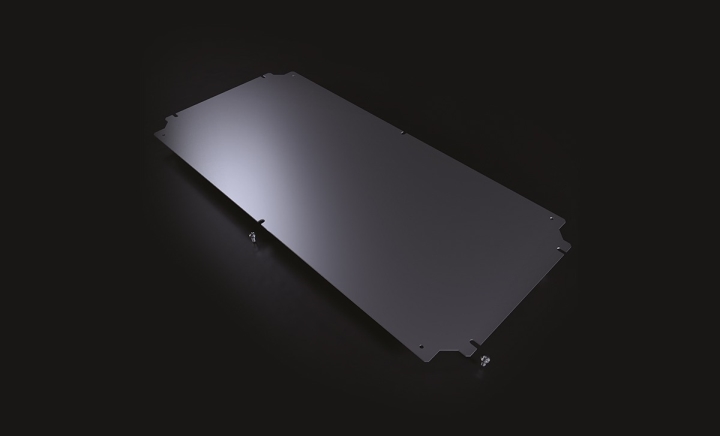

Optional mounting plates used for KT series and glazed DM enclosures. Complies with IEC 62208 standard.
Relevant Dimension:
Enclosure width (W) and height (H)
Material:
DX51 galvanized sheet steel
Surface Finish:
Untreated surface
Supply Includes:
1 pc mounting plate and fixing parts
| | | | Product Code | Width(W) | Heigth(H) | Enclosure Compliance |
|---|
| 2D DXF | 3D STEP | 943.111 | 150 | 150 | KT |
| 2D DXF | 3D STEP | 943.121 | 200 | 150 | KT |
| 2D DXF | 3D STEP | 943.122 | 200 | 200 | KT |
| 2D DXF | 3D STEP | 943.131 | 300 | 150 | KT |
| 2D DXF | 3D STEP | 943.132 | 300 | 200 | KT |
| 2D DXF | 3D STEP | 943.133 | 300 | 300 | KT |
| 2D DXF | 3D STEP | 943.141 | 400 | 150 | KT |
| 2D DXF | 3D STEP | 943.142 | 400 | 200 | KT |
| 2D DXF | 3D STEP | 943.143 | 400 | 300 | KT |
| 2D DXF | 3D STEP | 943.144 | 400 | 400 | KT |
| 2D DXF | 3D STEP | 943.152 | 500 | 200 | KT |
| 2D DXF | 3D STEP | 943.153 | 500 | 300 | KT |
| 2D DXF | 3D STEP | 943.162 | 600 | 200 | KT |
| 2D DXF | 3D STEP | 943.163 | 600 | 300 | KT |
| 2D DXF | 3D STEP | 943.163 | 600 | 300 | KT |
| 2D DXF | 3D STEP | 943.164 | 600 | 400 | KT |
| 2D DXF | 3D STEP | 943.182 | 800 | 200 | KT |
| 2D DXF | 3D STEP | 943.183 | 800 | 300 | KT |
| 2D DXF | 3D STEP | 943.184 | 800 | 400 | KT |
| 2D DXF | 3D STEP | 943.220 | 250 | 250 | DM Small |
| 2D DXF | 3D STEP | 943.222 | 200 | 200 | DM Small |
| 2D DXF | 3D STEP | 943.223 | 250 | 300 | DM Small |
| 2D DXF | 3D STEP | 943.225 | 200 | 250 | DM Small |
| 2D DXF | 3D STEP | 943.233 | 300 | 300 | DM Small |
| 2D DXF | 3D STEP | 943.234 | 300 | 400 | DM Small |
| 2D DXF | 3D STEP | 943.243 | 400 | 300 | DM Small |
| 2D DXF | 3D STEP | 943.253 | 250 | 350 | DM Small |
| 2D DXF | 3D STEP | 943.311 | 1000 | 1000 | DM-M / DM-L |
| 2D DXF | 3D STEP | 943.312 | 1000 | 1200 | DM-M / DM-L |
| 2D DXF | 3D STEP | 943.314 | 1000 | 1400 | DM-M / DM-L |
| 2D DXF | 3D STEP | 943.318 | 1200 | 800 | DM-M / DM-L |
| 2D DXF | 3D STEP | 943.322 | 1200 | 1200 | DM-M / DM-L |
| 2D DXF | 3D STEP | 943.334 | 300 | 400 | DM-M |
| 2D DXF | 3D STEP | 943.335 | 300 | 500 | DM-M |
| 2D DXF | 3D STEP | 943.344 | 400 | 400 | DM-M |
| 2D DXF | 3D STEP | 943.345 | 400 | 500 | DM-M |
| 2D DXF | 3D STEP | 943.346 | 400 | 600 | DM-M |
| 2D DXF | 3D STEP | 943.348 | 400 | 800 | DM-M |
| 2D DXF | 3D STEP | 943.354 | 500 | 400 | DM-M |
| 2D DXF | 3D STEP | 943.355 | 500 | 500 | DM-M |
| 2D DXF | 3D STEP | 943.356 | 500 | 600 | DM-M |
| 2D DXF | 3D STEP | 943.357 | 500 | 700 | DM-M |
| 2D DXF | 3D STEP | 943.361 | 600 | 1000 | DM-M / DM-L |
| 2D DXF | 3D STEP | 943.362 | 600 | 1200 | DM-M / DM-L |
| 2D DXF | 3D STEP | 943.364 | 600 | 400 | DM-M / DM-L |
| 2D DXF | 3D STEP | 943.366 | 600 | 600 | DM-M / DM-L |
| 2D DXF | 3D STEP | 943.368 | 600 | 800 | DM-M / DM-L |
| 2D DXF | 3D STEP | 943.381 | 800 | 1000 | DM-M / DM-L |
| 2D DXF | 3D STEP | 943.382 | 800 | 1200 | DM-M / DM-L |
| 2D DXF | 3D STEP | 943.386 | 800 | 600 | DM-M / DM-L |
| 2D DXF | 3D STEP | 943.388 | 800 | 800 | DM-M / DM-L |
