Compatibility:
DM-M and DM-L enclosures
Description:

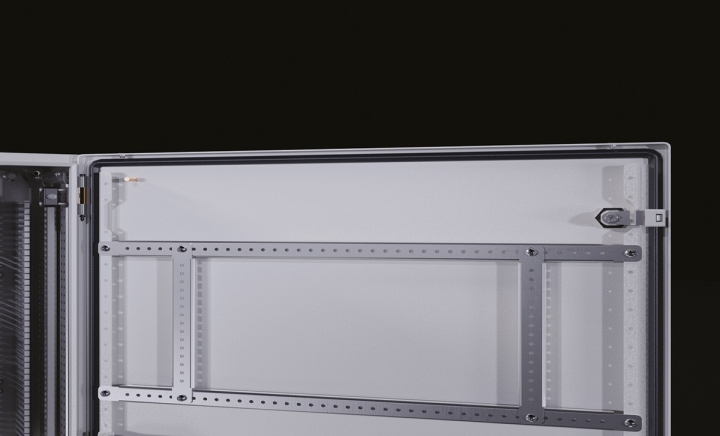

Mounted on the inner side of the enclosure door onto the door support profiles. Used for cable routing or mounting small devices. Complies with IEC 62208 standard.
Relevant Dimension:
Enclosure width (W) and enclosure version
Material:
DX51 galvanized steel
Surface Finish:
Uncoated surface
Supply Includes:
1 support rail with assmebly parts
| | | | Product Code | Width(W) |
|---|
| 2D DXF | 3D STEP | 973.023 | 400 (V2-3) / - |
| 2D DXF | 3D STEP | 973.024 | 500 (V2-3) / 1000(V4) |
| 2D DXF | 3D STEP | 973.025 | - / 1000(V6) |
| 2D DXF | 3D STEP | 973.026 | 600(V2-3) / 1200(V4) |
| 2D DXF | 3D STEP | 973.027 | 600(V5) / 1200(V6) |
| 2D DXF | 3D STEP | 973.028 | 800(V2-3) / - |
| 2D DXF | 3D STEP | 973.029 | 800(V5) / - |
| 2D DXF | 3D STEP |
