General Overview

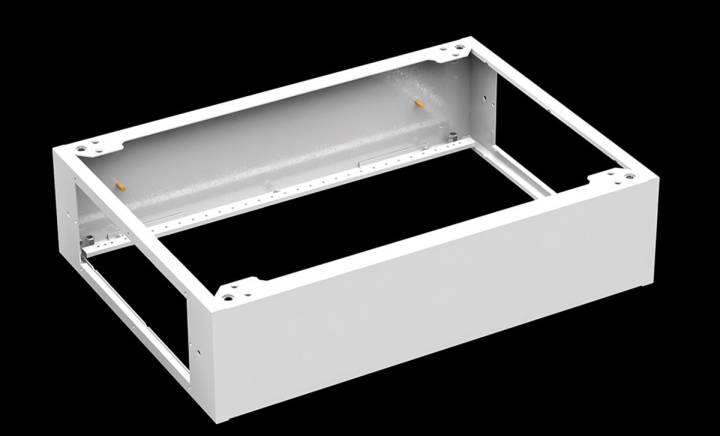

Block Base

Compatibility:
TEOS, NEO Modular, NEO HC Monoblock, NEO HC Modular, NEO HC Monoblock

Description:
The block plinth can be joined side by side on adjacent enclosures, providing additional support to the enclosure group.

Relevant Dimension:
Enclosure Width (W) and Enclosure Depth (D) × Plinth HeightMaterial: DX51 galvanized sheet steel

Surface Finish:
Nano coating with RAL 7035 powder coating application

Supply Includes:
Welded block plinth, floor and enclosure mounting components

		Product Code	Width(W)	Depth(D)	Plinth Heigth
2D DXF	3D STEP	915.116	1000	600	100
2D DXF	3D STEP	915.118	1000	800	100
2D DXF	3D STEP	915.124	1200	400	100
2D DXF	3D STEP	915.126	1200	600	100
2D DXF	3D STEP	915.128	1200	800	600
2D DXF	3D STEP	915.146	400	600	100
2D DXF	3D STEP	915.148	400	800	100
2D DXF	3D STEP	915.164	600	400	100
2D DXF	3D STEP	915.166	600	600	100
2D DXF	3D STEP	915.168	600	800	100
2D DXF	3D STEP	915.176	700	600	100
2D DXF	3D STEP	915.178	700	800	100
2D DXF	3D STEP	915.184	800	400	100
2D DXF	3D STEP	915.186	800	600	100
2D DXF	3D STEP	915.188	800	800	100
2D DXF	3D STEP	915.216	1000	600	200
2D DXF	3D STEP	915.218	1000	800	200
2D DXF	3D STEP	915.224	1200	400	200
2D DXF	3D STEP	915.226	1200	600	200
2D DXF	3D STEP	915.228	1200	800	200
2D DXF	3D STEP	915.246	400	600	200
2D DXF	3D STEP	915.248	400	800	200
2D DXF	3D STEP	915.264	600	400	200
2D DXF	3D STEP	915.266	600	600	200
2D DXF	3D STEP	915.268	600	800	200
2D DXF	3D STEP	915.276	700	600	200
2D DXF	3D STEP	915.278	700	800	200
2D DXF	3D STEP	915.284	800	400	200
2D DXF	3D STEP	915.286	800	600	200
2D DXF	3D STEP	915.288	800	800	200
