Compatibility:
Block Plinth
Relevant Dimension:
Enclosure Depth (D) × Plinth Height
Material:
DX51 galvanized sheet steel
Surface Finish:
Nano coating with RAL 7035 powder coating application
Supply Includes:

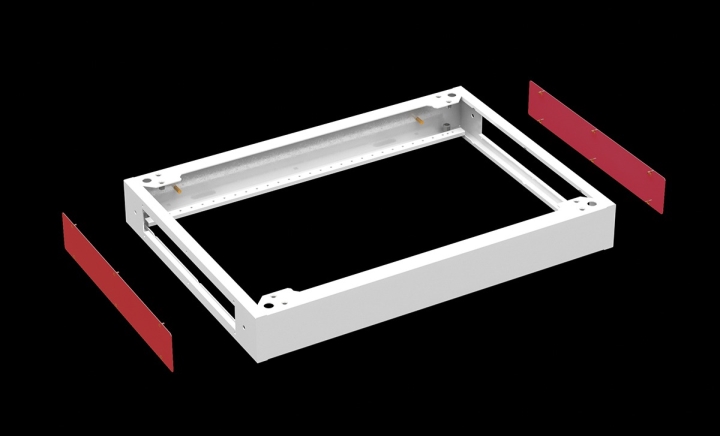

2 pcs of side covers and assembly components
| | | | Product Code | Depth(D) | Plinth Heigth |
|---|
| 2D DXF | 3D STEP | 916.140 | 400 | 100 |
| 2D DXF | 3D STEP | 916.160 | 600 | 100 |
| 2D DXF | 3D STEP | 916.180 | 800 | 100 |
| 2D DXF | 3D STEP | 916.240 | 400 | 200 |
| 2D DXF | 3D STEP | 916.260 | 600 | 200 |
| 2D DXF | 3D STEP | 916.280 | 800 | 200 |
