Compatibility:
TEOS Modular
Description:

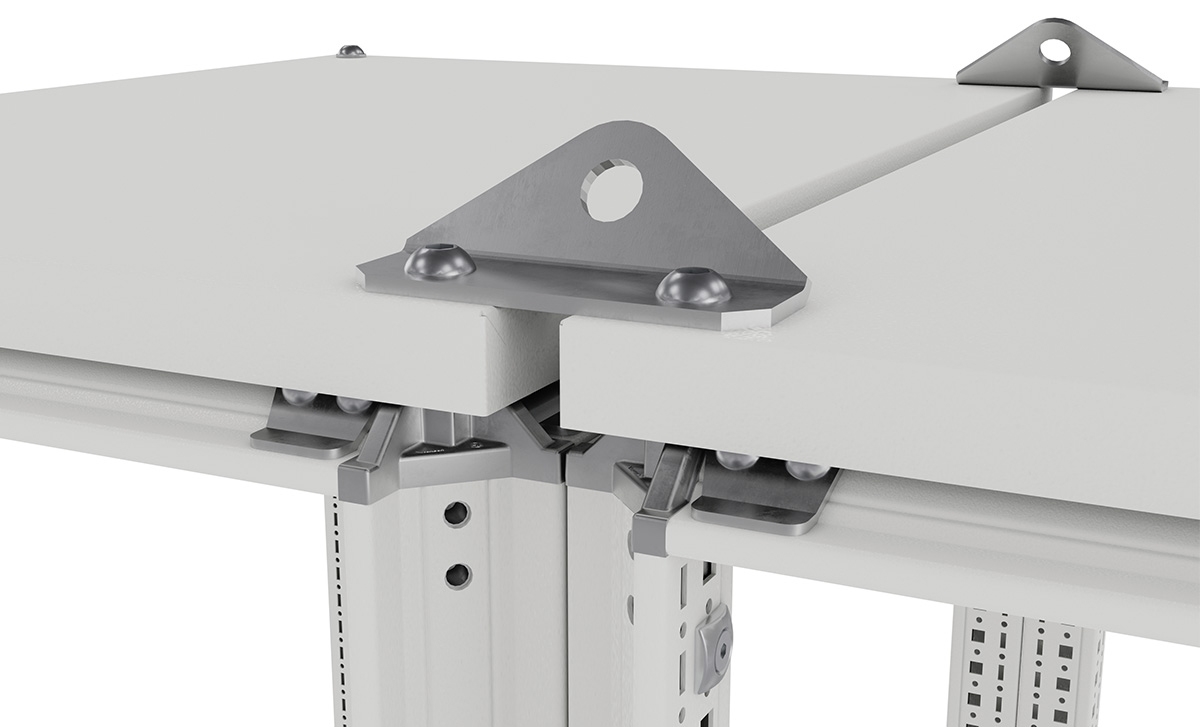

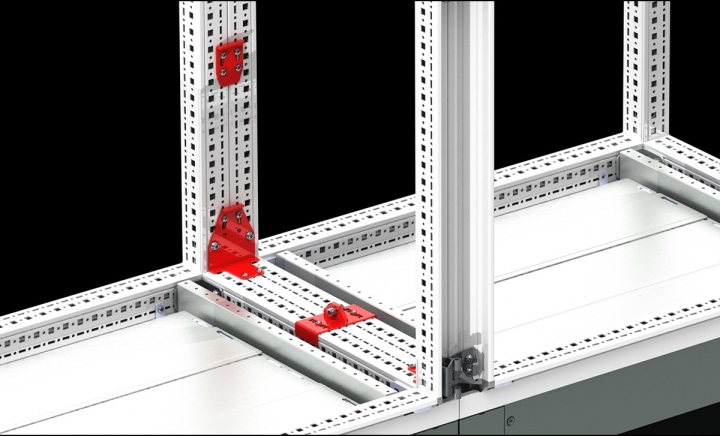

Consists of components required for joining TEOS enclosures side by side. Compliant with IEC 62208 and UL508A standards. Relevant Dimension: Compatible with all enclosure sizes
Material:
DC01 steel
Surface Finish:
Zinc plated Supply Includes: 2 pcs double lifting rings, 4 pcs inner corner fixing components, 4 pcs vertical fixing components, 2 pcs depth adjustment components, 5.6 m enclosure inter-gasket, Assembly bolts
| | | | Product Code |
|---|
| 2D DXF | 3D STEP | 711.000 |
