Description:

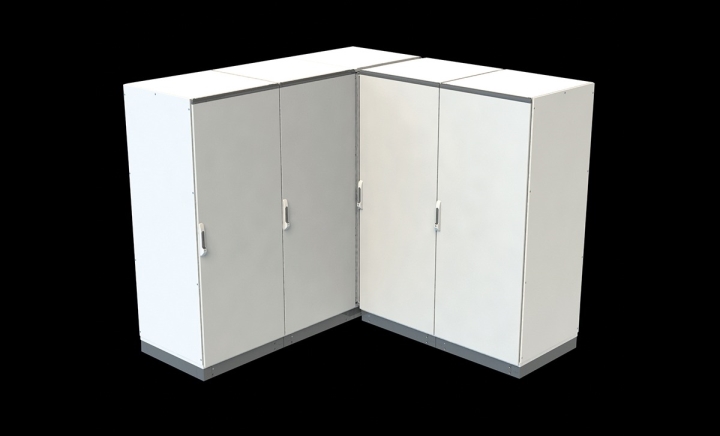

Consists of an adapter part and cover set to enable “L”-shaped side-by-side joining of enclosures. Compliant with IEC 62208 and UL508A standards.
Protection rating:
IP65 / NEMA 12 and IK10 according to IEC EN 60529. Corrosion resistance level: C3-M according to EN ISO 12944-2.
Relevant Dimension:
Enclosure Height (H) and Depth (D) Material: DC01 mild steel
Surface Finish:
Nano coating with RAL 7035 powder coating application
Supply Includes:
Adapter Part: 1 pcs adapter frame and enclosure assembly components
Cover Set: 2 pcs rear covers and assembly components
Required:
Suitable bottom-top groups, vertical profiles, and plinth parts for the corner enclosure must also be supplied.
| | | | Product Code | Heigth(H) | Depth(D) | Product |
|---|
| 2D DXF | 3D STEP | 933.000 | 1800 | 600 | Adapter |
| 2D DXF | 3D STEP | 933.001 | 1800 | 800 | Adapter |
| 2D DXF | 3D STEP | 933.002 | 2000 | 600 | Adapter |
| 2D DXF | 3D STEP | 933.003 | 2000 | 800 | Adapter |
| 2D DXF | 3D STEP | 933.004 | 1800 | 600 | Panel Set |
| 2D DXF | 3D STEP | 933.005 | 1800 | 800 | Panel Set |
| 2D DXF | 3D STEP | 933.006 | 2000 | 600 | Panel Set |
| 2D DXF | 3D STEP | 933.007 | 2000 | 800 | Panel Set |
