Compatibility:
All TEOS and NEO Enclosures
Description:

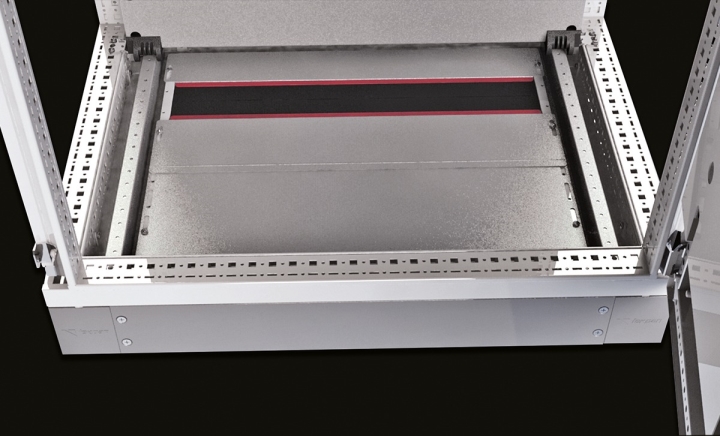

Used at cable entries to compress cables within the sponge, reducing dust ingress. Compliant with IEC 62208 standards, protection rating IP3X according to IEC EN 60529.
Relevant Dimension:
Enclosure Width (W)
Material:
Polyurethane sponge and DX51 galvanized sheet steel
Surface Finish:
Untreated surface
Supply Includes:
1 set of sponge entry components
Required:
For enclosures with widths of 1000 mm and 1200 mm, 2 sets may be required
| | | | Product Code | Width(W) |
|---|
| 2D DXF | 3D STEP | 923.100 | 1000 |
| 2D DXF | 3D STEP | 923.120 | 1200 |
| 2D DXF | 3D STEP | 923.400 | 400 |
| 2D DXF | 3D STEP | 923.600 | 600 |
| 2D DXF | 3D STEP | 923.700 | 700 |
| 2D DXF | 3D STEP | 923.800 | 800 |
