Compatibility:
All Cable Fixing Rails (C Type)
Description:

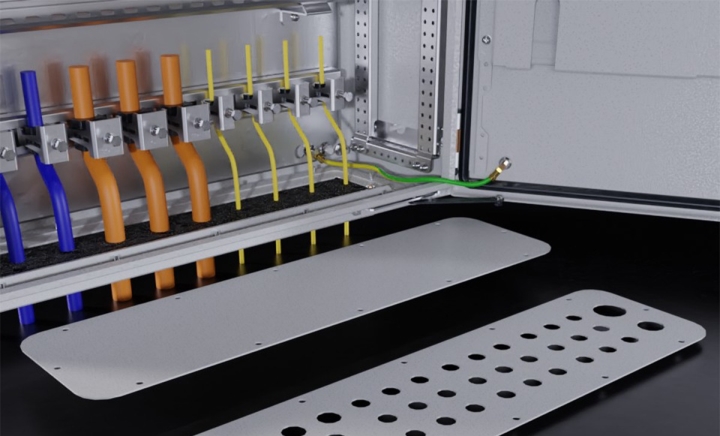

Clamping brackets used to secure cables at the enclosure entry and reduce their tension. Clamps are mounted on C-type rails. Compliant with IEC 62208 standards.
Relevant Dimension:
Compatible with all enclosure sizes
Material:
DC01 DKP Sheet Steel, Polyamide Base Plastic
Surface Finish:
Zinc-plated Supply Includes:
Cable Diameter 8–14 mm = 30 pcs
Cable Diameter 14–20 mm = 20 pcs
Cable Diameter 20–28 mm = 15 pcs
Required:
Appropriate C Type Cable Fixing Rail matching the enclosure width.
| | | | Product Code | Cable Diameter | Quantity |
|---|
| 2D DXF | 3D STEP | 998.600 | 14 - 20 | 20 |
| 2D DXF | 3D STEP | 998.700 | 20 - 28 | 15 |
