Compatibility:
All TEOS and NEO Enclosures
Description:

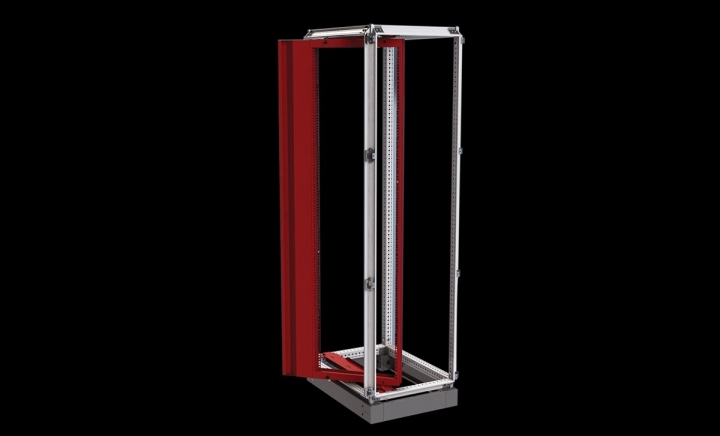

Rotating frame system mounted on the front of the enclosure for 19" devices. Features 130° rotation and 1500N static load capacity. In 600mm wide enclosures, the rotation is centered; in 800mm wide enclosures, it is edge-supported. Compliant with IEC 62208 standard.
Relevant Dimension:
Enclosure Width (W) and Height (H)
Material:
DC01 DKP Steel
Surface Finish:
Nano coating with RAL 7035 powder paint
Supply Includes:
1 set of 19" rotating frame and locks
| | | | Product Code | Width(W) | Heigth(H) | U |
|---|
| 2D DXF | 3D STEP | 944.935 | 600 | 1200 | 22 |
| 2D DXF | 3D STEP | 944.936 | 600 | 1600 | 31 |
| 2D DXF | 3D STEP | 944.937 | 600 | 1800 | 36 |
| 2D DXF | 3D STEP | 944.938 | 600 | 2000 | 40 |
| 2D DXF | 3D STEP | 944.939 | 600 | 2200 | 45 |
| 2D DXF | 3D STEP | 944.940 | 800 | 1200 | 22 |
| 2D DXF | 3D STEP | 944.941 | 800 | 1600 | 31 |
| 2D DXF | 3D STEP | 944.942 | 800 | 1800 | 36 |
| 2D DXF | 3D STEP | 944.943 | 800 | 2000 | 40 |
| 2D DXF | 3D STEP | 944.944 | 800 | 2200 | 45 |
