Compatibility:
All TEOS and NEO Enclosures
Description:

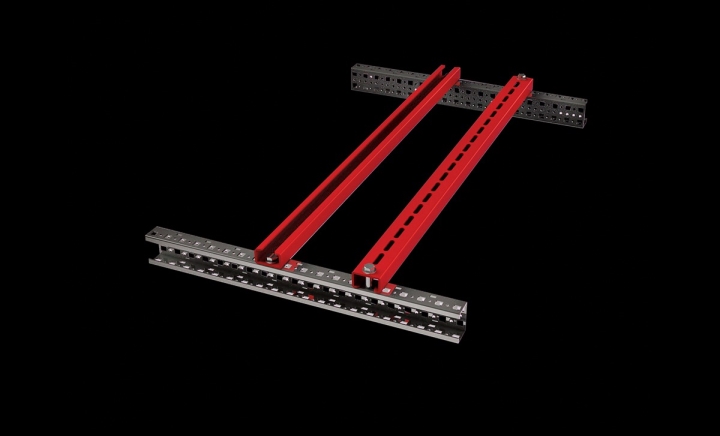

Used for mounting heavy equipment such as open-type circuit breakers and transformers. Can be installed onto 50x25 mm perforated cross rails or directly onto the enclosure body. Compliant with IEC 62208 standard.
Relevant Dimension:
Enclosure Width (W)
Material:
DX51 Galvanized Steel, 3.00 mm thickness
Surface Finish:
Untreated surface
Supply Includes:
2 heavy-duty equipment profiles and mounting hardware
Required:
4 pcs of M6 Captive Nuts are required for mounting onto the enclosure body.
944.170 M6 Captive Nut: 100 pcs / pack
944.171 M6 Captive Nut: 10 pcs / pack
| | | | Product Code | Width(W) |
|---|
| 2D DXF | 3D STEP | 998.510 | 1000 |
| 2D DXF | 3D STEP | 998.540 | 400 |
| 2D DXF | 3D STEP | 998.560 | 600 |
| 2D DXF | 3D STEP | 998.570 | 700 |
| 2D DXF | 3D STEP | 998.580 | 800 |
