Compatibility:
All TEOS and NEO enclosure bodies
Description:

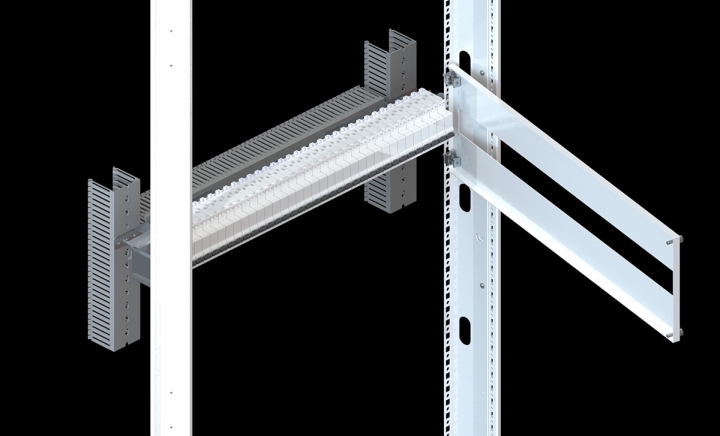

Mounting kit for installing W-MCBs on the front of the enclosure. Allows the use of cable ducts on the rear side. Compliant with IEC 62208 standard.
Relevant Dimension:
Enclosure Width (W)
Material: Brackets:
DX51 Galvanized Steel, DIN Rail: Aluminum Extrusion
Surface Finish:
Anodized Coating
Supply Includes:
1 aluminum DIN rail, 2 enclosure mounting brackets, 4 cable duct brackets, and mounting screws
| | | | Product Code | Width(W) |
|---|
| 2D DXF | 3D STEP | 973.340 | 400 |
| 2D DXF | 3D STEP | 973.360 | 600 |
| 2D DXF | 3D STEP | 973.380 | 800 |
