Compatibility:
TEOS Enclosures
Description:

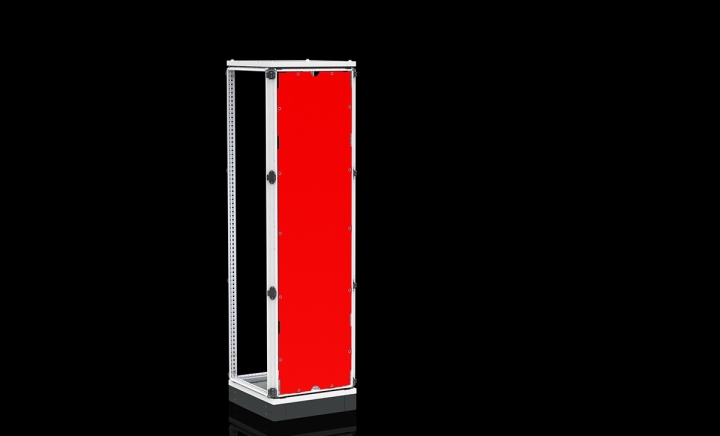

Used to close the gap between two side-by-side enclosures and to electrically isolate them from each other. Provides IP 3XC protection according to IEC EN 60529. Compliant with IEC 62208 standard.
Relevant Dimension:
Enclosure Height (H) and Depth (D)
Material:
DX51 Galvanized Steel
Surface Finish:
Nano coating with RAL 7035 powder coating application
Supply Includes:
1 partition panel and enclosure mounting parts
| | | | Product Code | Heigth(H) | Depth(D) |
|---|
| 2D DXF | 3D STEP | 935.001 | 1800 | 400 |
| 2D DXF | 3D STEP | 935.002 | 1800 | 500 |
| 2D DXF | 3D STEP | 935.003 | 1800 | 600 |
| 2D DXF | 3D STEP | 935.004 | 1800 | 800 |
| 2D DXF | 3D STEP | 935.005 | 2000 | 400 |
| 2D DXF | 3D STEP | 935.006 | 2000 | 500 |
| 2D DXF | 3D STEP | 935.007 | 2000 | 600 |
| 2D DXF | 3D STEP | 935.008 | 2000 | 800 |
| 2D DXF | 3D STEP | 935.009 | 2200 | 600 |
