Compatibility:
TEOS Modular
Description:

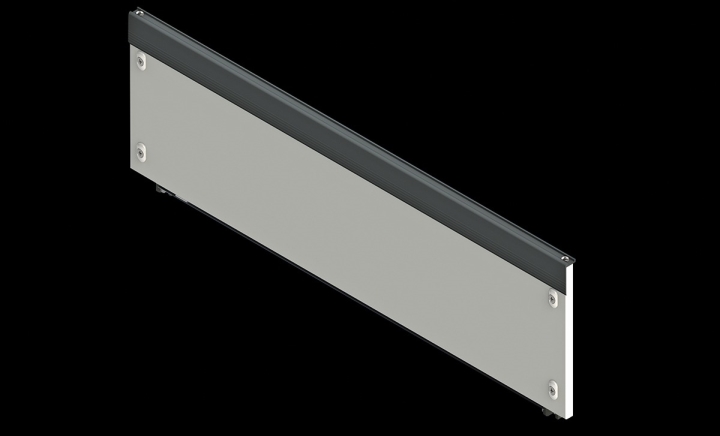

Used in hinged front door applications composed of independent panels on the enclosure front. Designed to close the top or bottom end of the enclosure with a fixed mounting technique. Available in 100mm or 200mm height options. When selecting the height option, the enclosure's nominal mountable height should be considered. Compliant with IEC 62208 and UL508A standards. Provides IP54 / NEMA 12 protection according to IEC EN 60529 and IK10 impact resistance. Corrosion resistance according to EN ISO 12944-2 C3-M.
Relevant Dimension:
Enclosure Width (W) and Panel Height
Material:
DC01 DKP Steel
Surface Finish:
Nano coating with RAL 7035 powder paint
Supply Includes:
Top Fixed Panel: 1 panel, 1 gray crown, 1 door intermediate profile, and connection parts
Bottom Fixed Panel: 1 panel and connection parts
Note:
When selecting the height option, consider the enclosure’s nominal mountable height: Nominal Enclosure Height = Enclosure Height (H) - 100mm
| | | | Product Code | Width(W) | Model | Panel Heigth |
|---|
| 2D DXF | 3D STEP | 854.410 | 400 | Upper-Fixed | 100 |
| 2D DXF | 3D STEP | 854.420 | 400 | Upper-Fixed | 200 |
| 2D DXF | 3D STEP | 854.610 | 600 | Upper-Fixed | 100 |
| 2D DXF | 3D STEP | 854.620 | 600 | Upper-Fixed | 200 |
| 2D DXF | 3D STEP | 854.810 | 800 | Upper-Fixed | 100 |
| 2D DXF | 3D STEP | 854.820 | 800 | Upper-Fixed | 200 |
| 2D DXF | 3D STEP | 855.410 | 400 | Lower Fixed | 200 |
| 2D DXF | 3D STEP | 855.420 | 400 | Lower Fixed | 200 |
| 2D DXF | 3D STEP | 855.610 | 600 | Lower Fixed | 100 |
| 2D DXF | 3D STEP | 855.620 | 600 | Lower Fixed | 200 |
| 2D DXF | 3D STEP | 855.810 | 800 | Lower Fixed | 100 |
| 2D DXF | 3D STEP | 855.820 | 800 | Lower Fixed | 200 |
