Compatibility:
TEOS Modular

Description:

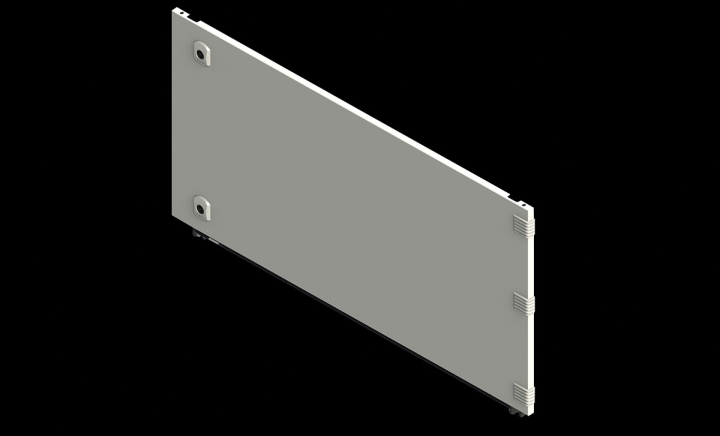

Used for hinged front door applications composed of independent panels on the enclosure front. Intended for creating hinged doors in the middle sections of the enclosure. Provides 180° opening capacity. When selecting the height option, the enclosure’s nominal mountable height should be considered. Compliant with IEC 62208 and UL508A standards. Provides IP54 / NEMA 12 protection according to IEC EN 60529 and IK10 impact resistance. Corrosion resistance according to EN ISO 12944-2 C3-M.

Relevant Dimension:
Enclosure Width (W) and Door Height

Material:
DC01 DKP Steel

Surface Finish:
Nano coating with RAL 7035 powder paint

Supply Includes:
1 hinged modular door
1 intermediate profile
Locks and connection parts

Required:
To use the hinged modular door, 1 Top Fixed Panel and 1 Bottom Fixed Panel are required at the enclosure’s top and bottom.

Note:
When selecting the height option, consider the enclosure’s nominal mountable height:Nominal Enclosure Height = Enclosure Height (H) - 100mm
