Compatibility:
DM Enclosures
Relevant Size:
Enclosure Width (W)
Material:
AISI 304 (1.4301) and AISI 316 (1.4404)
Surface Treatment:
Satin Finish
Product Content:

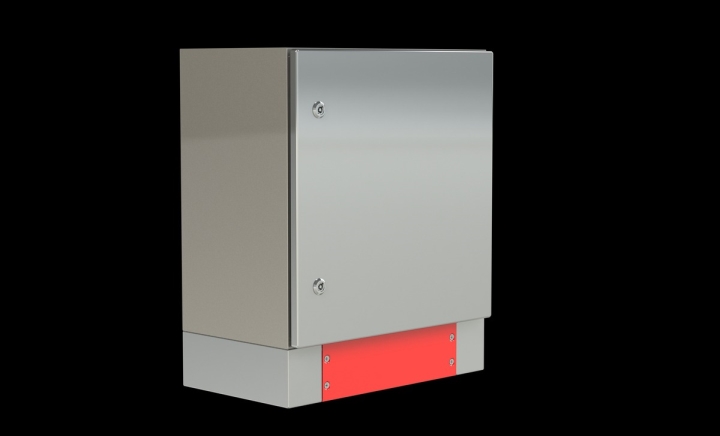

2 modular plinth front and rear covers with 100mm height and plinth mounting accessories
Required:
For 200mm height plinth selection, 2 sets are required
| | | | Product Code | Width(W) | Material |
|---|
| 2D DXF | 3D STEP | 975.002 | 400 | AISI 304 |
| 2D DXF | 3D STEP | 975.003 | 500 | AISI 304 |
| 2D DXF | 3D STEP | 975.004 | 600 | AISI 304 |
| 2D DXF | 3D STEP | 975.005 | 800 | AISI 304 |
| 2D DXF | 3D STEP | 975.006 | 1000 | AISI 304 |
| 2D DXF | 3D STEP | 975.012 | 600 | AISI 316 |
| 2D DXF | 3D STEP | 975.013 | 800 | AISI 316 |
| 2D DXF | 3D STEP | 975.014 | 1000 | AISI 316 |
