Compatibility:
All Cable Fixing Rails (C-Type)
Description:

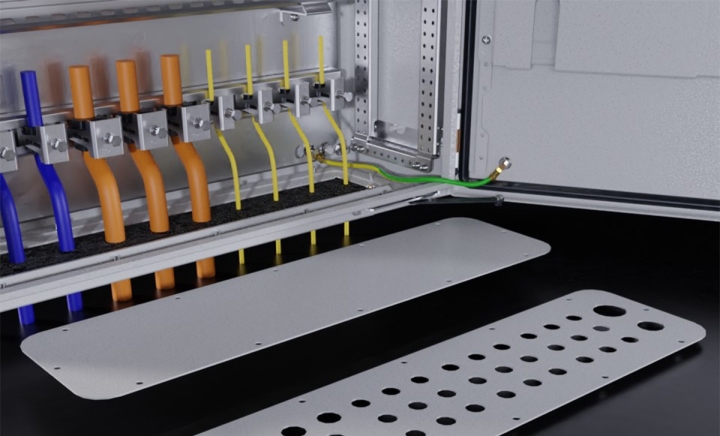

Clamping brackets used to secure cables and reduce cable strain at the enclosure cable entry points. Clamps are mounted on C-type rails. Complies with IEC 62208 standard.
Relevant Dimension:
Compatible with all enclosure sizes
Material:
DC01 Cold-Rolled Sheet Steel, Polyamide base plastic
Surface Finish:
Zinc plating
Supply Includes:
For cable diameter 8–14 mm: 30 pcs
For cable diameter 14–20 mm: 20 pcs
For cable diameter 20–28 mm: 15 pcs
Required:
Cable Fixing Rail (C-Type) suitable for the enclosure width is required
| | | | Product Code | Cable Diameter | Quantity |
|---|
| 2D DXF | 3D STEP | 998.400 | 8 - 14 | 30 |
| 2D DXF | 3D STEP | 998.600 | 14 - 20 | 20 |
| 2D DXF | 3D STEP | 998.700 | 20 - 28 | 15 |
