Compatibility:
DM-M and DM-L enclosures
Description:

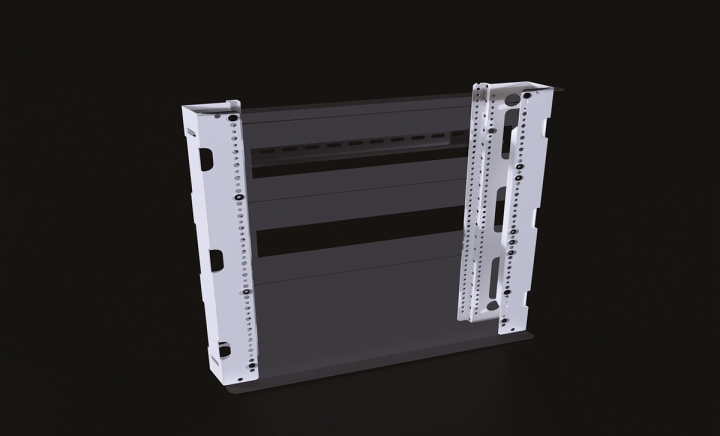

Modular mounting frame set designed to enable power distribution up to 250 A inside the enclosure. Allows installation of DIN rails and DIN rail–mounted devices. Partial mounting plates allow the installation of compact circuit breakers, distribution sets, and current transformers up to 250 A. Partial inner covers provide front protection and enclosure safety. Provides IP3XD protection according to IEC EN 60529 and complies with IEC 62208 standard.
Relevant Dimension:
Enclosure width (W) and height (H)
Material:
DC01 sheet steel
Surface Finish:
Nano coating with RAL 7035 powder coating
Supply Includes:
2 vertical mounting profiles, 2 upper and lower cover plates, and enclosure assmebly accessories.
Note:
Internal frame mounting height (Y) = Enclosure height (H) – 60 mm. Partial inner covers should completely fill this mounting space. Internal frame mounting width (X) = Enclosure width (W) – 105 mm.
