Compliance:
NEO Modular Stainless Steel Panels
Description:
Compliant with IEC 62208 and UL508A standards
IP66 Protection according to IEC EN 60529 / NEMA 4X protection and IK10 protection
Relevant Dimensions:
Panel Height (H) and Depth (D)
Material:
AISI 304 (1.4301) Stainless Steel Sheet
Surface Finish:
Satin finish
Product Contents:

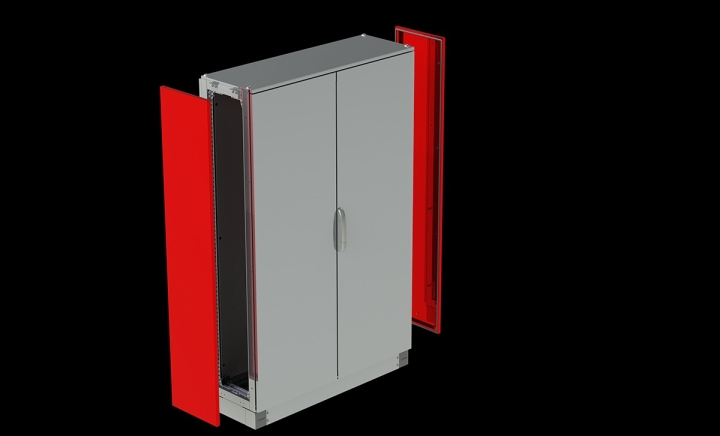

2 side covers and panel connection parts
Note:
Side covers are mounted to the panel from the inside. Therefore, side covers must be installed before the panel's internal assembly is completed.
| | | | Product Code | Heigth(H) | Depth(D) |
|---|
| 2D DXF | 3D STEP | 637.164 | 1600 | 400 |
| 2D DXF | 3D STEP | 637.184 | 1800 | 400 |
| 2D DXF | 3D STEP | 637.185 | 1800 | 500 |
| 2D DXF | 3D STEP | 637.186 | 1800 | 600 |
| 2D DXF | 3D STEP | 637.205 | 2000 | 500 |
| 2D DXF | 3D STEP | 637.206 | 2000 | 600 |
