Compatibility:
All TEOS and NEO Panels

Description:

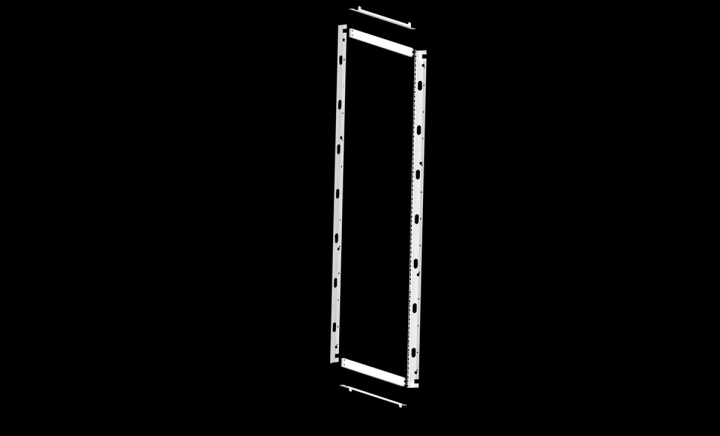

Modular frame structure used to create an inner cover on the front surface inside the panel
The entire inner cover or segmented inner covers of various sizes can be used on the frame.
Once the inner covers are fully installed, they provide IP 3XC protection according to IEC EN 60529.
Compliant with IEC 62208 standards

Relevant Dimensions:
Panel Width (W) and Height (H)

Material:
DC01 DKP Sheet Metal

Surface Finish:
RAL 7035 powder coating over nano coating.

Supply Includes:
2 vertical profiles, 2 horizontal profiles, 2 top and bottom covers, and connecting parts.

Note:
The net internal height of the frame should be considered when selecting segmented inner covers.
