General Overview

Partial Inner Covers

Compatibility:
All TEOS and NEO Panels

Description:

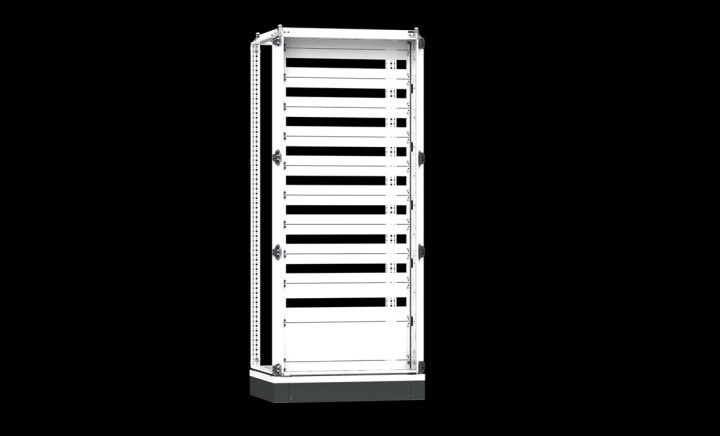

Hinged and lockable inner covers used to create a segmented, modular inner cover on the front surface of the panel. It consists of three models: closed, DIN device slotted, and ventilated.
Once the inner covers are fully installed, they provide IP 3XC protection according to IEC EN 60529.
Compliant with IEC 62208 standards.

Relevant Dimensions:
Panel Width (W) and Inner Cover Height (H1)

Material:
DC01 DKP Sheet Metal

Surface Treatment:
RAL 7035 powder coating over nano coating

Product Contents:
1 piece split inner cover, hinges, screw-nut lock

Required:
1 piece Inner Cover Mounting Frame suitable for the panel width and height is required for panel mounting. The net inner height of the frame should be considered when selecting the inner cover.

		Product Code	Width(W)	Model	Cover Plate Heigth(mm)
2D DXF	3D STEP	954.005	1000	Solid	50
2D DXF	3D STEP	954.010	1000	Solid	100
2D DXF	3D STEP	954.015	1000	Solid	150
2D DXF	3D STEP	954.016	1000	DIN- W	150
2D DXF	3D STEP	954.020	1000	Solid	200
2D DXF	3D STEP	954.021	1000	DIN- W	200
2D DXF	3D STEP	954.022	1000	Ventilation	200
2D DXF	3D STEP	954.025	1000	Solid	250
2D DXF	3D STEP	954.030	1000	Solid	300
2D DXF	3D STEP	954.031	1000	DIN- W	300
2D DXF	3D STEP	954.032	1000	Ventilation	300
2D DXF	3D STEP	954.035	1000	Solid	350
2D DXF	3D STEP	954.040	1000	Solid	400
2D DXF	3D STEP	954.050	1000	Solid	500
2D DXF	3D STEP	954.060	1000	Solid	600
2D DXF	3D STEP	954.405	400	Solid	50
2D DXF	3D STEP	954.410	400	Solid	100
2D DXF	3D STEP	954.415	400	Solid	150
2D DXF	3D STEP	954.416	400	DIN- W	150
2D DXF	3D STEP	954.420	400	Solid	200
2D DXF	3D STEP	954.421	400	DIN- W	200
2D DXF	3D STEP	954.425	400	Solid	250
2D DXF	3D STEP	954.430	400	Solid	300
2D DXF	3D STEP	954.431	400	DIN- W	300
2D DXF	3D STEP	954.435	400	Solid	350
2D DXF	3D STEP	954.440	400	Solid	400
2D DXF	3D STEP	954.450	400	Solid	500
2D DXF	3D STEP	954.460	400	Solid	600
2D DXF	3D STEP	954.605	600	Solid	50
2D DXF	3D STEP	954.610	600	Solid	100
2D DXF	3D STEP	954.615	600	Solid	150
2D DXF	3D STEP	954.616	600	DIN- W	150
2D DXF	3D STEP	954.620	600	Solid	200
2D DXF	3D STEP	954.621	600	DIN- W	200
2D DXF	3D STEP	954.622	600	Ventilation	200
2D DXF	3D STEP	954.625	600	Solid	250
2D DXF	3D STEP	954.630	600	Solid	300
2D DXF	3D STEP	954.631	600	DIN- W	300
2D DXF	3D STEP	954.632	600	Ventilation	300
2D DXF	3D STEP	954.635	600	Solid	350
2D DXF	3D STEP	954.640	600	Solid	400
2D DXF	3D STEP	954.650	600	Solid	500
2D DXF	3D STEP	954.660	600	Solid	600
2D DXF	3D STEP	954.705	700	Solid	50
2D DXF	3D STEP	954.710	700	Solid	100
2D DXF	3D STEP	954.715	700	Solid	150
2D DXF	3D STEP	954.716	700	DIN- W	150
2D DXF	3D STEP	954.720	700	Solid	200
2D DXF	3D STEP	954.721	700	DIN- W	200
2D DXF	3D STEP	954.725	700	Solid	250
2D DXF	3D STEP	954.730	700	Solid	300
2D DXF	3D STEP	954.731	700	DIN- W	300
2D DXF	3D STEP	954.735	700	Solid	350
2D DXF	3D STEP	954.740	700	Solid	400
2D DXF	3D STEP	954.750	700	Solid	500
2D DXF	3D STEP	954.760	700	Solid	600
2D DXF	3D STEP	954.805	800	Solid	50
2D DXF	3D STEP	954.810	800	Solid	100
2D DXF	3D STEP	954.815	800	Solid	150
2D DXF	3D STEP	954.815	800	Solid	150
2D DXF	3D STEP	954.816	800	DIN- W	150
2D DXF	3D STEP	954.820	800	Solid	200
2D DXF	3D STEP	954.821	800	DIN- W	200
2D DXF	3D STEP	954.822	800	Ventilation	200
2D DXF	3D STEP	954.825	800	Solid	250
2D DXF	3D STEP	954.830	800	Solid	300
2D DXF	3D STEP	954.831	800	DIN- W	300
2D DXF	3D STEP	954.832	800	Ventilation	300
2D DXF	3D STEP	954.835	800	Solid	350
2D DXF	3D STEP	954.840	800	Solid	400
2D DXF	3D STEP	954.850	800	Solid	500
2D DXF	3D STEP	954.860	800	Solid	600
