Compatibility:
Full-height mounting plates of all TEOS and NEO Enclosures
Description:

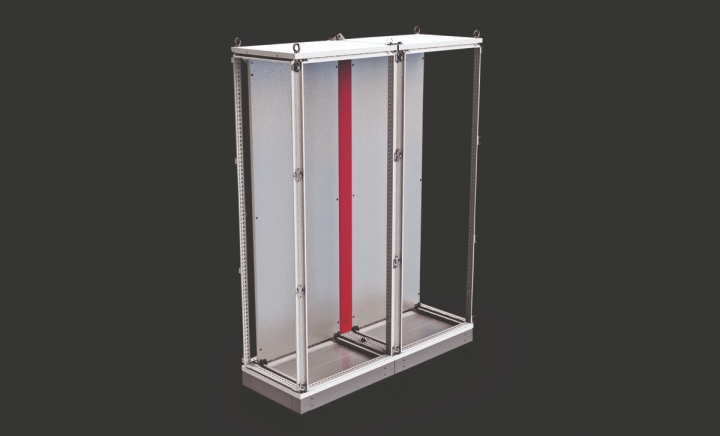

Used to utilize the gap between two mounting plates in combined enclosures as an additional mounting area. Since it is attached to the mounting plates, it can move forward or backward together with them, or it can be used centrally between dual mounting plates. Compliant with IEC 62208 and UL508A standards.
Relevant Dimension:
Enclosure Height (H)
Material:
DX51 Galvanized Sheet Steel, 2.00 mm thickness
Surface Finish:
Untreated surface
Supply Includes:
1 intermediate mounting plate, 3 brackets attachable to the mounting plates, and assembly bolts.
| | | | Product Code | Heigth(H) |
|---|
| 2D DXF | 3D STEP | 712.120 | 1200 |
| 2D DXF | 3D STEP | 712.160 | 1600 |
| 2D DXF | 3D STEP | 712.180 | 1800 |
| 2D DXF | 3D STEP | 712.200 | 2000 |
| 2D DXF | 3D STEP | 712.220 | 2200 |
