Compatibility:
All TEOS and NEO Enclosures
Description:

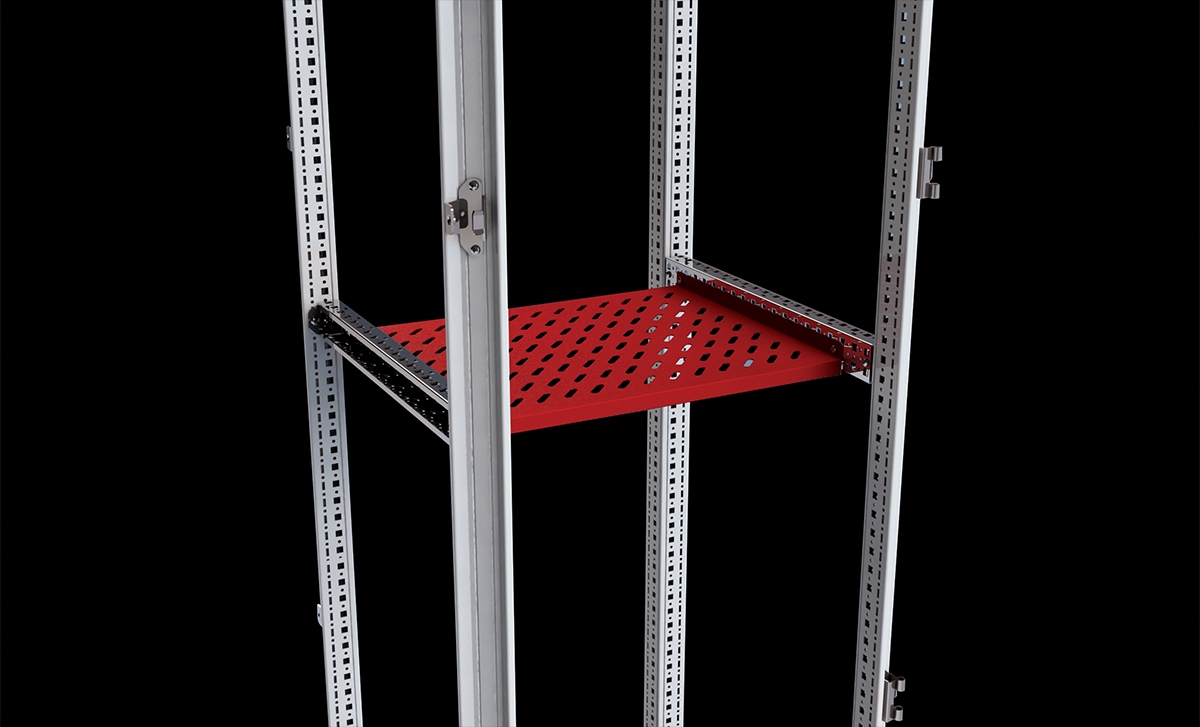

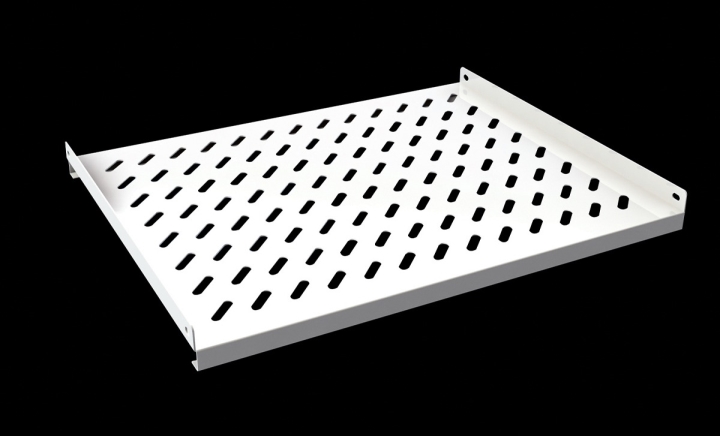

Used to create a shelf inside the enclosure. Compliant with IEC 62208 standard.
Relevant Dimension:
Enclosure Width (W) and Depth (D)
Material:
DC01 DKP Steel
Surface Finish:
Nano coating with RAL 7035 powder paint
Supply Includes:
1 fixed shelf and mounting screws
Required:
2 pieces of 50x25mm perforated rails suitable for the enclosure depth are required for mounting.
| | | | Product Code | Width(W) | Depth(D) |
|---|
| 2D DXF | 3D STEP | 945.200 | 600 | 600 |
| 2D DXF | 3D STEP | 945.201 | 600 | 800 |
| 2D DXF | 3D STEP | 945.202 | 600 | 600 |
| 2D DXF | 3D STEP | 945.203 | 800 | 800 |
