Compatibility:
DM-M and DM-L enclosures
Description:

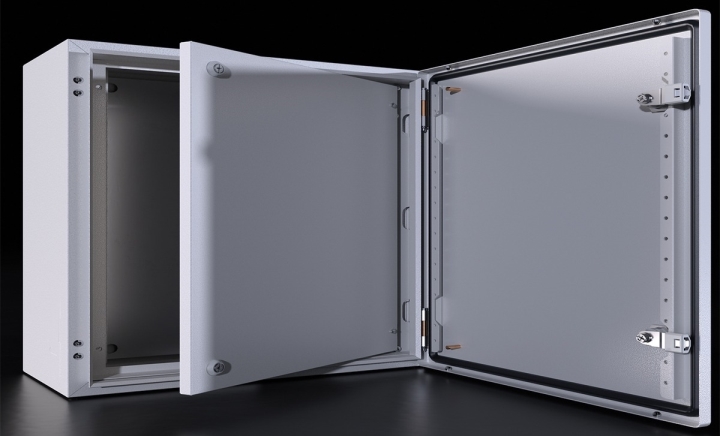

Used to create an additional inner door structure inside the enclosure. Features 90° opening angle and a quarter-turn lock with screwdriver slot. Provides IP3XD protection according to IEC EN 60529 and complies with IEC 62208 standard.
Relevant Dimension:
Enclosure width (W) and height (H)
Material:
DC01 sheet steel
Surface Finish:
Nano coating with RAL 7035 powder coating
Supply Includes:
1 pc hinged andinner door with locks, 2 pcs vertical profiles, 2 pcs top and bottom covers, and assembly parts
| | | | Product Code | Width(W) | Heigth(H) |
|---|
| 2D DXF | 3D STEP | 975.034 | 300 | 400 |
| 2D DXF | 3D STEP | 975.044 | 400 | 400 |
| 2D DXF | 3D STEP | 975.045 | 400 | 500 |
| 2D DXF | 3D STEP | 975.046 | 400 | 600 |
| 2D DXF | 3D STEP | 975.057 | 500 | 700 |
| 2D DXF | 3D STEP | 975.068 | 600 | 800 |
| 2D DXF | 3D STEP | 975.610 | 600 | 1000 |
| 2D DXF | 3D STEP | 975.612 | 600 | 1200 |
| 2D DXF | 3D STEP | 975.810 | 800 | 1000 |
| 2D DXF | 3D STEP | 975.812 | 800 | 1200 |
