Compatibility:
DM-M and DM-L enclosures
Description:

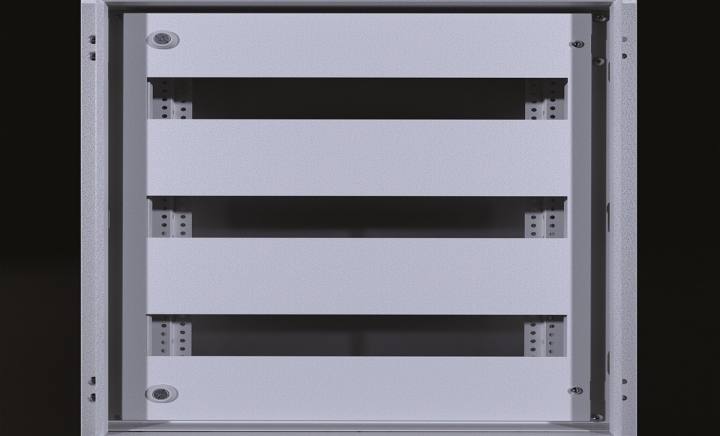

Modular inner cover designed for mounting DIN rail devices such as circuit breakers inside the enclosure. Features 90° opening angle and a quarter-turn lock with screwdriver slot. Provides IP3XD protection according to IEC EN 60529 and complies with IEC 62208 standard.
Relevant Dimension:
Enclosure width (W) and height (H)
Material:
DC01 sheet steel
Surface Finish:
Nano coating with RAL 7035 powder coating
Supply Includes:
1 hinged and door with openings for MCBs, 2 vertical profiles, 2 upper and lower cover plates, H15 mm DIN rails, and mounting accessories.
| | | | Product Code | Width(W) | Heigth(H) | Rows | Total MCB |
|---|
| 2D DXF | 3D STEP | 973.034 | 300 | 400 | 2 | 22 |
| 2D DXF | 3D STEP | 973.044 | 400 | 400 | 3 | 34 |
| 2D DXF | 3D STEP | 973.045 | 400 | 500 | 3 | 51 |
| 2D DXF | 3D STEP | 973.046 | 400 | 600 | 4 | 68 |
| 2D DXF | 3D STEP | 973.057 | 500 | 700 | 5 | 110 |
| 2D DXF | 3D STEP | 973.068 | 600 | 800 | 6 | 162 |
| 2D DXF | 3D STEP | 973.610 | 600 | 1000 | 7 | 196 |
| 2D DXF | 3D STEP | 973.612 | 600 | 1200 | 8 | 224 |
| 2D DXF | 3D STEP | 973.810 | 800 | 1000 | 7 | 273 |
