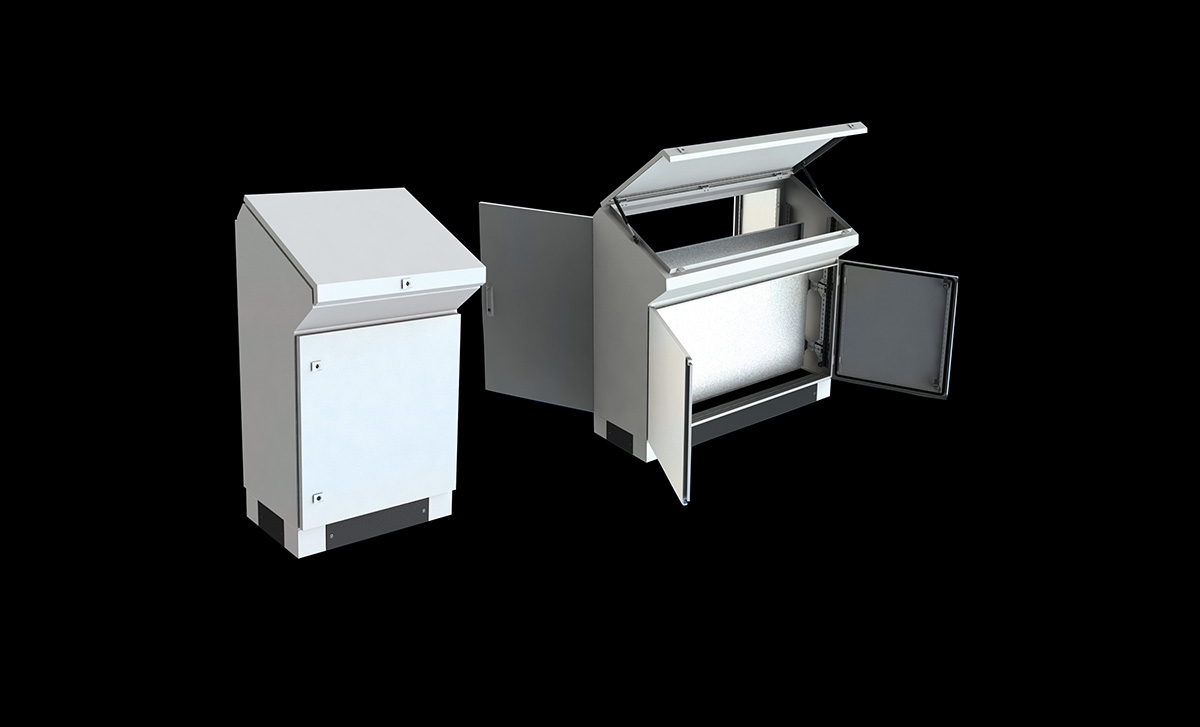

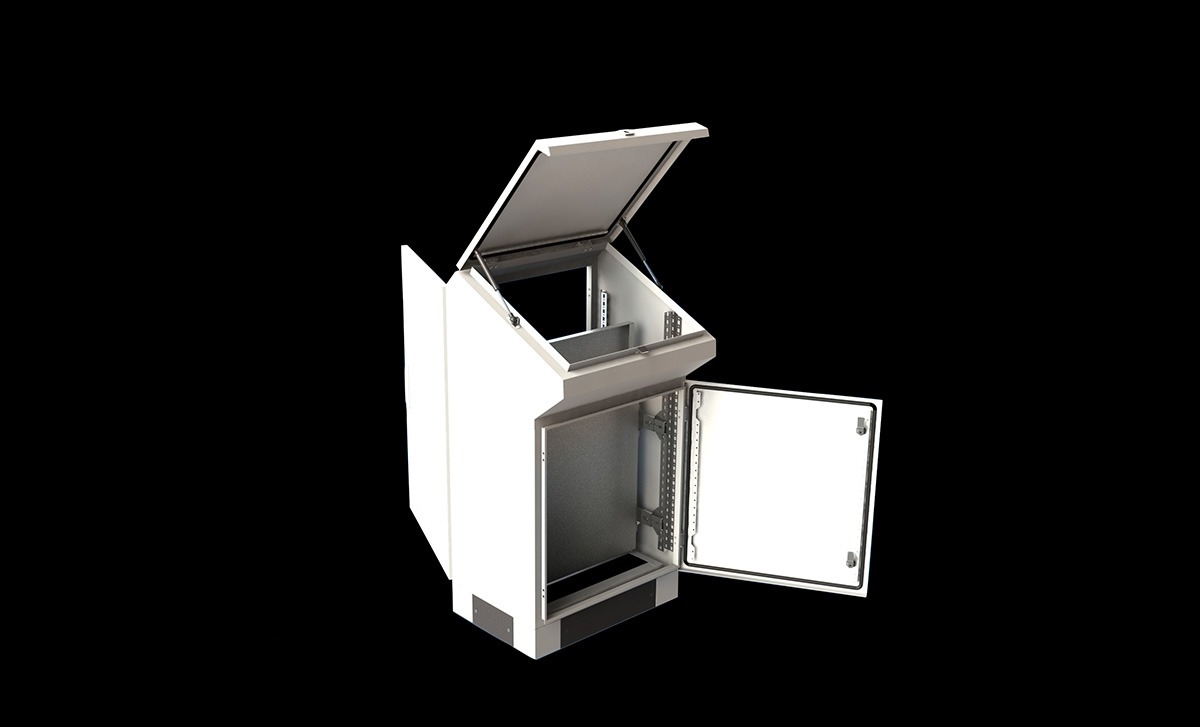

- Free Standing Console Enclosure – Suitable for Indoor Use
- Front, rear, and gas-spring assisted top doors
- 2 pcs mounting plates, with plinth and gland plates
- Locks with 5 mm double-bit quarter-turn locks and handle locks
- Complies with IEC 62208 and UL 50E standards
- IP protection according to IEC EN 60529:
- Single front door enclosures: IP55 / NEMA 1, 12
- Double front door enclosures: IP54 / NEMA 1, 12
- IK10 impact protection according to IEC EN 62262
Material:
Enclosure, doors and gland plates: DC01 sheet steel
Mounting plates and plinth: DX51 galvanized sheet steel
Surface:
Finish Enclosure, doors, plinth and gland plates: Nano coating and RAL 7035 polyester powder coating
Mounting plates: Cold Galvanized
Supply Includes:
Enclosure, front door, rear door, gas-spring assisted top door, H 100 mm plinth, gland plates, and 2 pcs mounting plates
Product Technical Information
| | | | Product Code | Width(W) | Heigth(H) | Depth(D) | Door |
|---|
| 2D DXF | 3D STEP | 522.400 | 1200 | 1130 | 529 | Couple |
| 2D DXF | 3D STEP | 522.400 | 1200 | 1130 | 529 | Couple |
| 2D DXF | 3D STEP | 526.400 | 600 | 1130 | 529 | Single |
| 2D DXF | 3D STEP | 528.400 | 800 | 1130 | 529 | Single |
