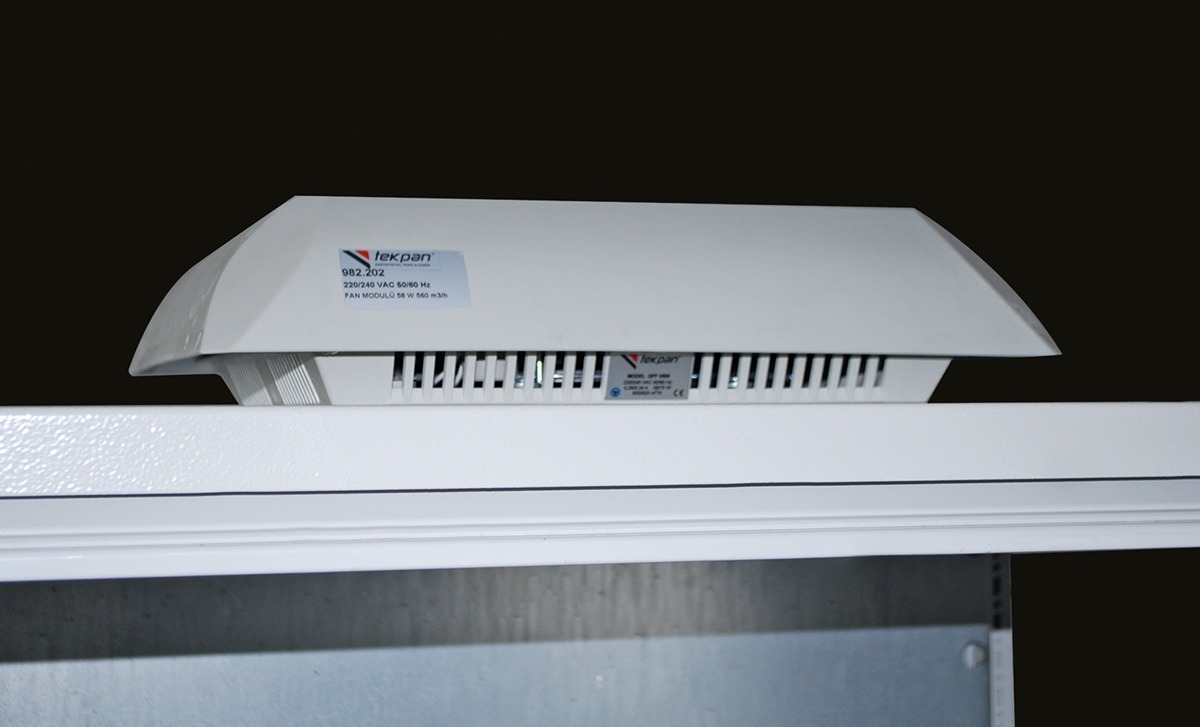

- Powerful air ventilation, Top Mounted Fan Unit
- Provides high airflow for enclosure exhaust while protecting against dust and liquids
- Vertical air intake with horizontal air discharge for high airflow performance
- IP44 protection according to IEC EN 60529
- Nominal operating voltage: 230V AC, 50/60 Hz
Material:
Housing and canopy: Flame-retardant plastic RAL 7035, UL94 V0Fan: Aluminum housing and blades, ball-bearing system
Supply Includes:
1 top module housing with finger guard and canopy, 1 EBM brand fan
Note:
Should be used in conjunction with appropriate ventilation filters at the lower section of the enclosure
Ensures performance when the required internal temperature is higher than the ambient temperature
Recommended for use in environments with low dust and low relative humidity
| | | | Product Code | Air Flow | Fan Power |
|---|
| 2D DXF | 3D STEP | 982.202 | 560m³ / hour | 58W |
| 2D DXF | 3D STEP | 982.203 | 970m³ / hour | 85W |
