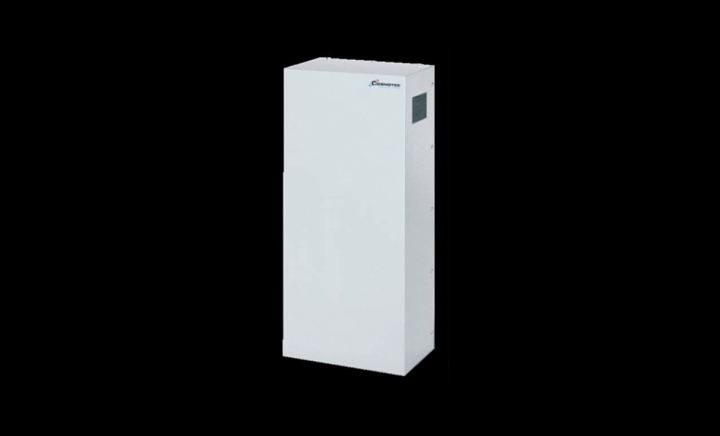

- Air-to-Water Heat Exchanger – For Enclosures (Indoor Use)
- Designed to reduce internal enclosure temperature using cold water from an external source in environments with high dust and high relative humidity
- Internal air circulation occurs within the enclosure; external dust and moisture do not enter
- IP54 protection according to IEC EN 60529
- Nominal operating voltage: 230V AC, 50/60 Hz
Supply Includes:
1 air-to-water heat exchanger
Note:
Used when the ambient temperature is higher than the desired internal temperature
Suitable for environments with high dust and high relative humidity
Requires an external cold water supply or source
| | | | Product Code | Air Flow | Power Consumption (W) | Cooling Capacity |
|---|
| 2D DXF | 3D STEP | EXW1500220 | 330m³ / hour | 575 | 2200W |
| 2D DXF | 3D STEP | EXW5000220 | 1450m³ / hour | 215 | 6700W |
| 2D DXF | 3D STEP | EXWA500220 | 2365m³ / hour | 170 | 17500W |
| 2D DXF | 3D STEP | EXWB000220 | 4730m³ / hour | 340 | 25000W |
