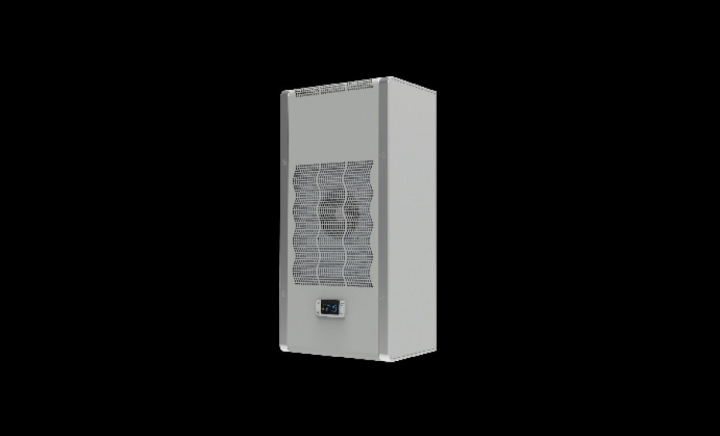

- Enclosure Cooling Unit/ Air Conditioner – For Indoor Use, Wall Mounted
- Designed to reduce internal enclosure temperature using chilled refrigerant in environments with moderate dust and medium relative humidity
- Internal air circulation occurs within the enclosure; external dust and moisture do not enter
- IP54 protection according to IEC EN 60529
- Nominal operating voltage: 230V AC, 50/60 Hz
Supply Includes:
1 enclosure air conditioner
Note:
Used when the ambient temperature is higher than the desired internal temperature
Suitable for environments with moderate dust and medium relative humidity
| | | | Product Code | Air Flow | Power Consumption (W) | Cooling Capacity |
|---|
| 2D DXF | 3D STEP | CVE05002208000 | 164-195m³ / hour | 295 | 550-580W |
| 2D DXF | 3D STEP | CVE08002208000 | 406m³ / hour | 435 | 850-900W |
| 2D DXF | 3D STEP | CVE11002208000 | 540-580m³ / hour | 505 | 1100-1150W |
| 2D DXF | 3D STEP | CVE15002208000 | 540-580m³ / hour | 630 | 1500-1600W |
| 2D DXF | 3D STEP | CVE20002208000 | 540-580m³ / hour | 980 | 2100-2200W |
| 2D DXF | 3D STEP | CVE30002208000 | 890-930m³ / hour | 1100 | 3000-3150W |
