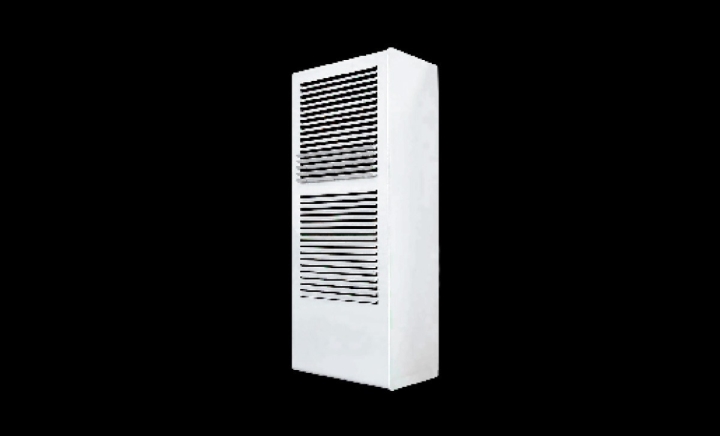

- Enclosure Cooling Unit/ Air Conditioner – For Outdoor Use, Wall Mounted
- Designed to reduce internal enclosure temperature using chilled refrigerant in environments with moderate dust and medium relative humidity
- Internal air circulation occurs within the enclosure; external dust and moisture do not enter
- IP54 protection according to IEC EN 60529
- Nominal operating voltage: 230V AC, 50/60 Hz
Supply Includes:
1 enclosure air conditioner
Note:
Used when the ambient temperature is higher than the desired internal temperature
Suitable for environments with moderate dust and medium relative humidity
| | | | Product Code | Air Flow | Power Consumption (W) | Cooling Capacity |
|---|
| 2D DXF | 3D STEP | CVO08002208000 | 340-356m³ / hour | 430 | 850-900W |
| 2D DXF | 3D STEP | CVO15002208000 | 540-580m³ / hour | 630 | 1500-1600W |
| 2D DXF | 3D STEP | CVO20002208000 | 540-580m³ / hour | 980 | 2100-2200W |
| 2D DXF | 3D STEP | CVO40002208000 | 1730-1950m³ / hour | 1640 | 4000-4100W |
