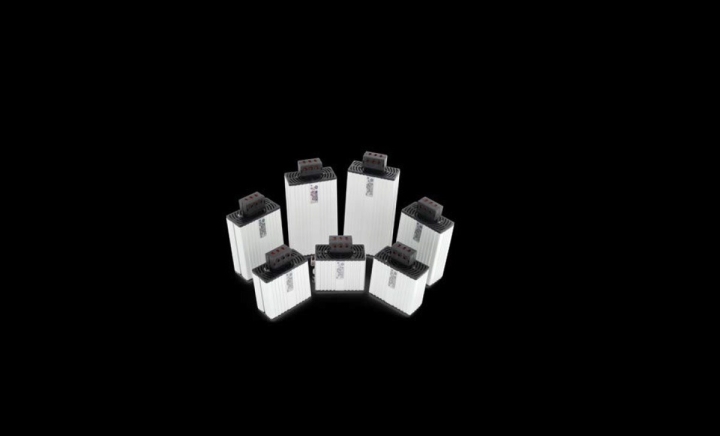

- Provides heating of internal enclosure air and prevents condensation
- Mounted on 35 mm DIN rails
- PTC semiconductor heating element with anodized aluminum profile housing
- IP20 protection according to IEC EN 60529
- Nominal operating voltage: 110–230V AC
- Complies with CE standards
Supply Includes:
1 enclosure heater
| | | | Product Code | Power | Body Temperature | Size (WxHxD)mm |
|---|
| 2D DXF | 3D STEP | 984.100 | 20W | 85°C | 82x65x42 |
| 2D DXF | 3D STEP | 984.200 | 30W | 85°C | 82x75x42 |
| 2D DXF | 3D STEP | 984.300 | 50W | 85°C | 82x85x42 |
| 2D DXF | 3D STEP | 984.400 | 75W | 125°C | 82x105x42 |
| 2D DXF | 3D STEP | 984.500 | 100W | 125°C | 82x120x42 |
| 2D DXF | 3D STEP | 984.600 | 125W | 125°C | 82x150x42 |
| 2D DXF | 3D STEP | 984.700 | 150W | 125°C | 82x190x42 |
