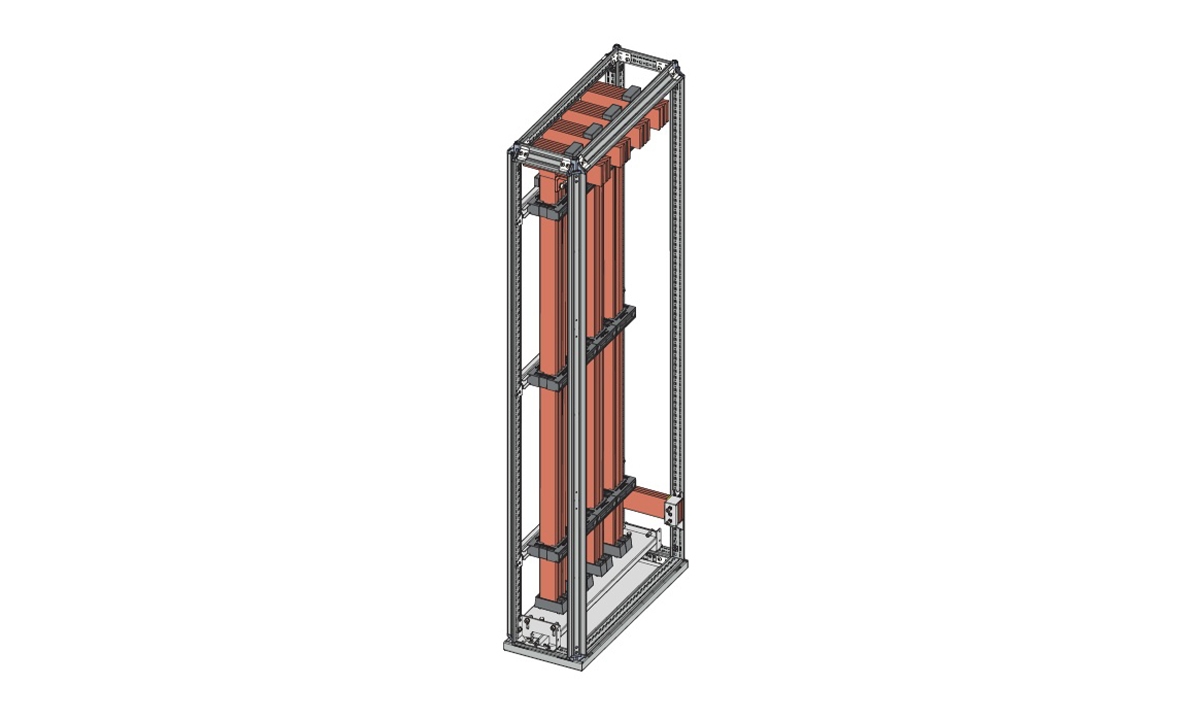

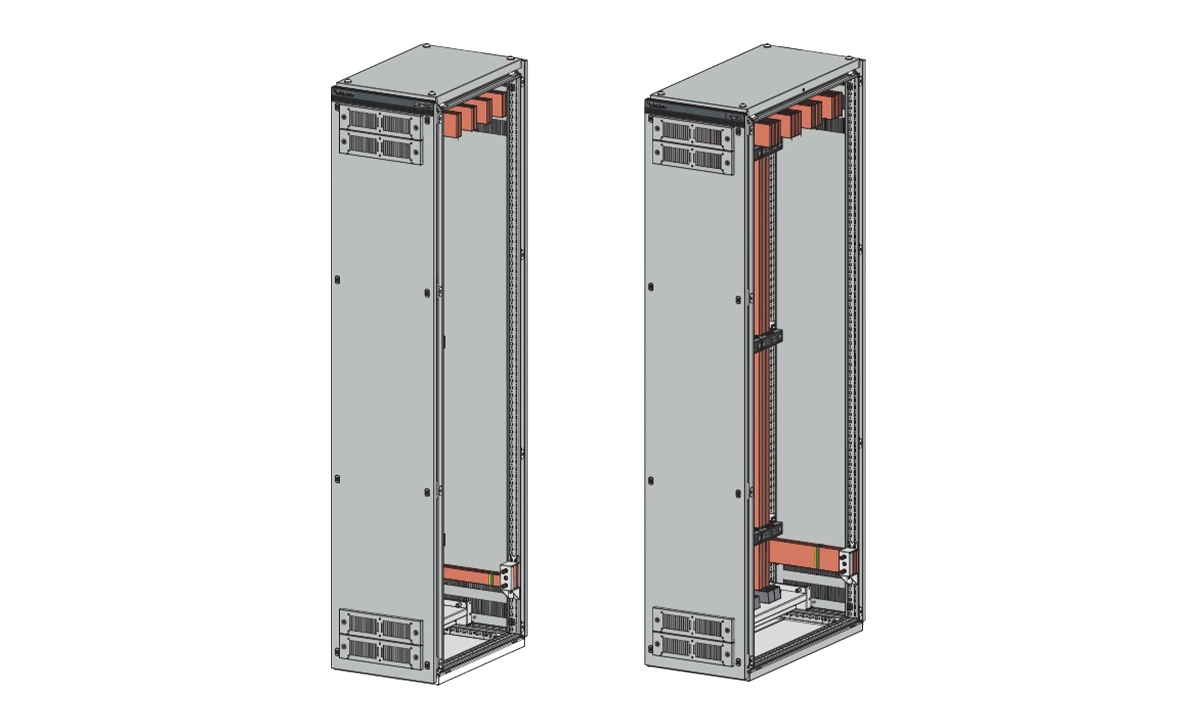

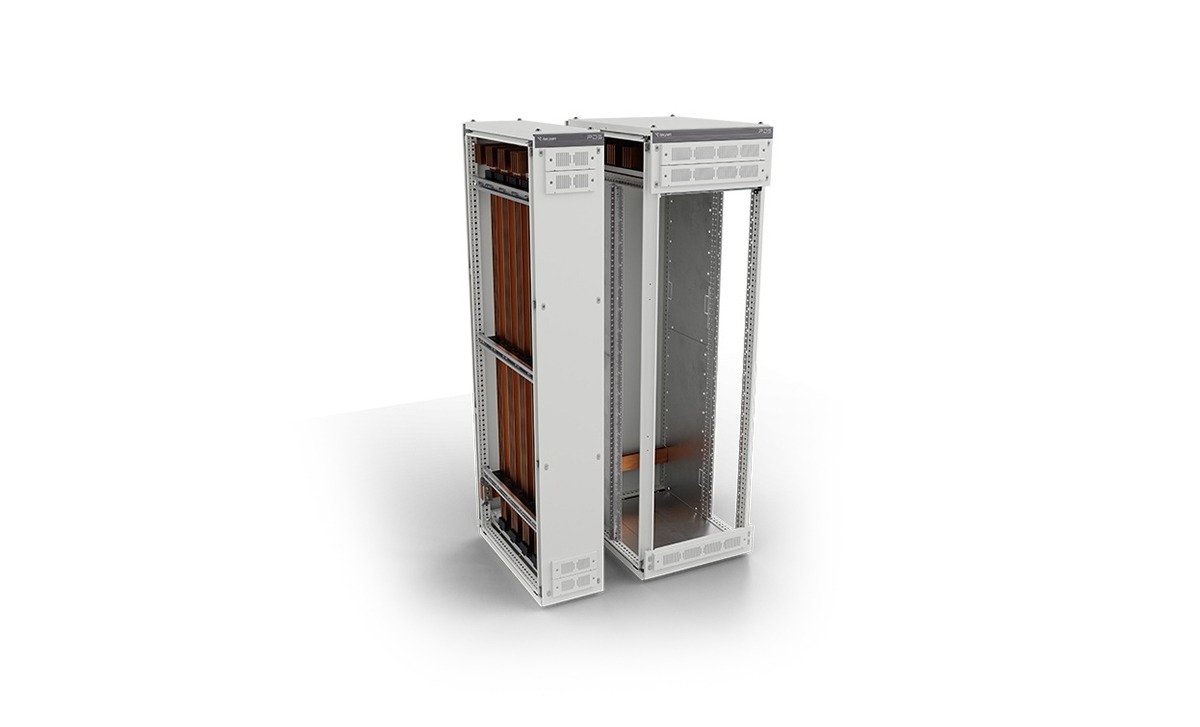

• Freestanding Indoor Power Distribution Switchboard – Vertical Busbar Distribution Module
• Purpose: Feeds fixed-type output modules, connected to the top main busbar (up to 4000A)
• Segregation: Form 1 and Form 4b
• Standards Compliance: IEC 61439-1 & 2
• Short-Time Withstand Current (Icw): Up to 85kA (1s), up to 65kA (3s)
• Rated Voltages: Ue: 690V AC, Ui: 1000V AC, Uimp: 12kV
• Ingress Protection: IP 2XD (without filter protection), IP 53D (with filter protection)

Materials:
Panels, Rear Panel, Top Panel: DC-01 Sheet Steel
Body, Base Plates: DX51 Galvanized Sheet Steel

Surface Finish:
Nano coating over RAL 7035 with powder coating applied to body, panels, rear and top panels

Supply Includes:
Selection guide and order codes available under the “More Information” section

Options:
Plinth, Side Panels, Baying Kit, and other accessories
