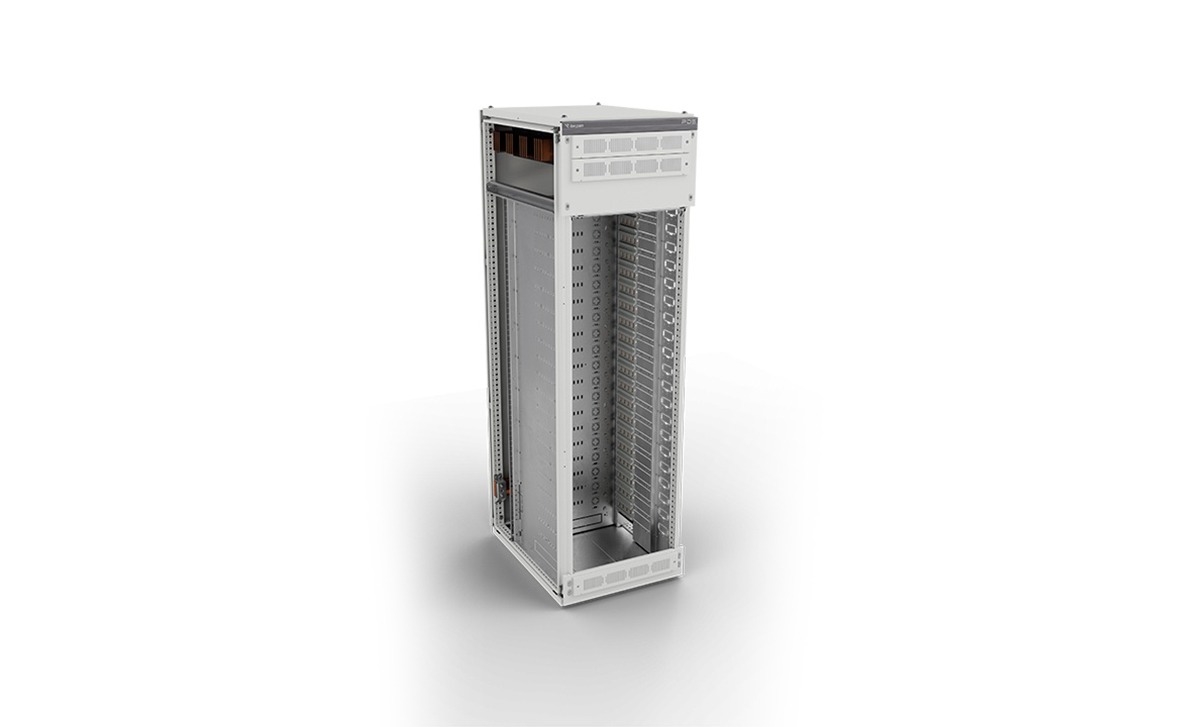

• Freestanding Indoor Power Distribution and Control Switchboard – Feeder Module

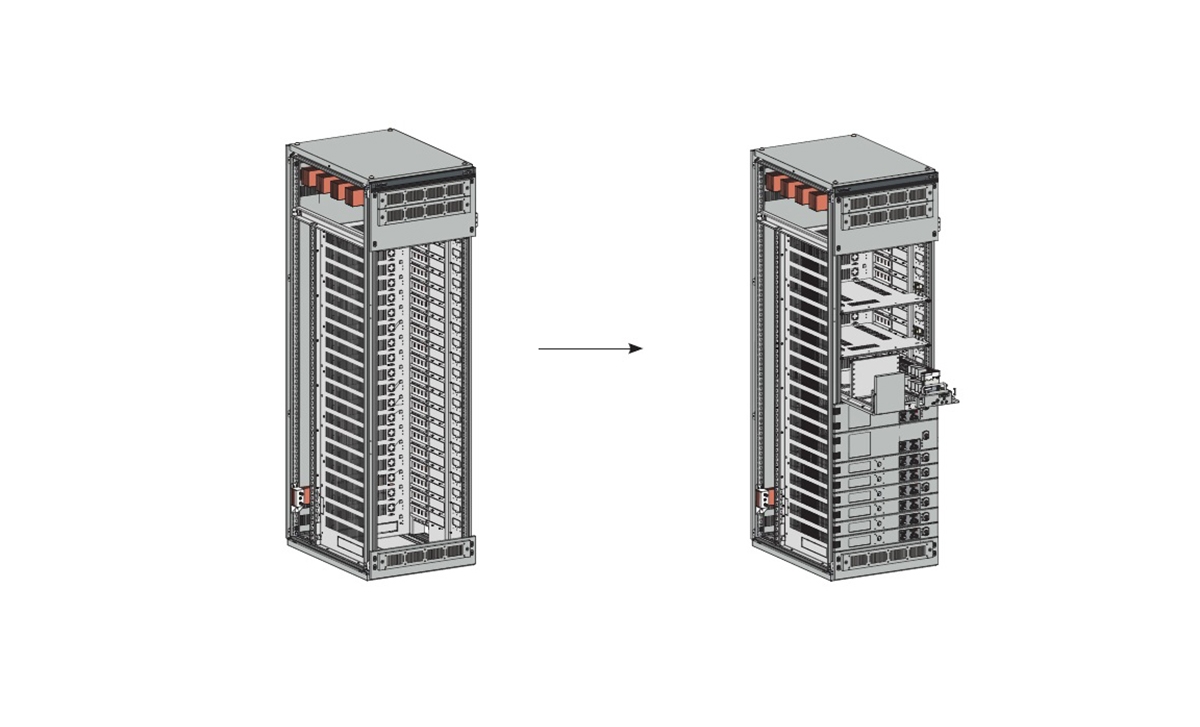

• Purpose: Mounts drawable-type output casettes, connected to the top main busbar (up to 1000A)

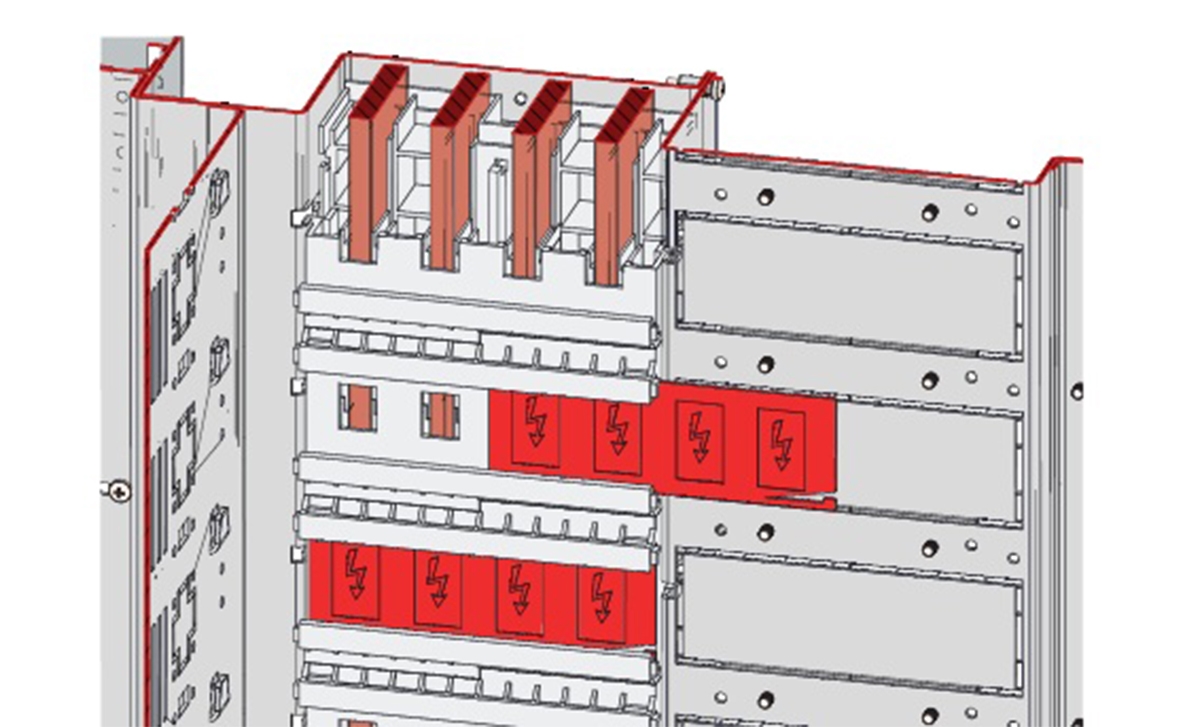

• Feeding Method: Vertical distribution busbar inside the module, side feeding with output to side cable modules
• Segregation: Form 4b
• Standards Compliance: IEC 61439-1 & 2
• Short-Time Withstand Current (Icw): Up to 60kA (1s)
• Rated Voltages: Ue: 690V AC, Ui: 800V AC, Uimp: 8kV
• Ingress Protection: IP 2XD (without filter protection), IP 40D (with filter protection)

Materials:
Panels, Rear Panel, Top Panel: DC-01 Sheet Steel
Body, Base Plates: DX51 Galvanized Sheet Steel

Surface Finish:
Nano coating over RAL 7035 with powder coating applied to body, panels, rear and top panels

Supply Includes:
Selection guide and order codes available under the “More Information” section

Options:
Plinth, Side Panels, Baying Kit, and other accessories
