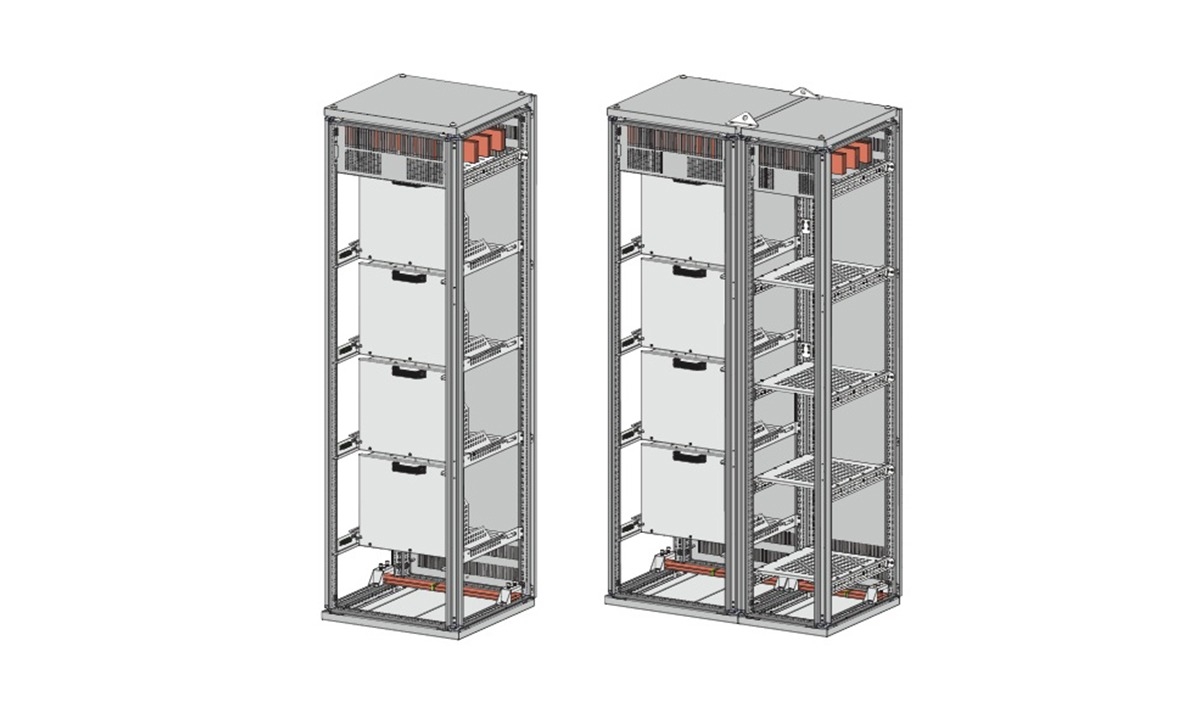

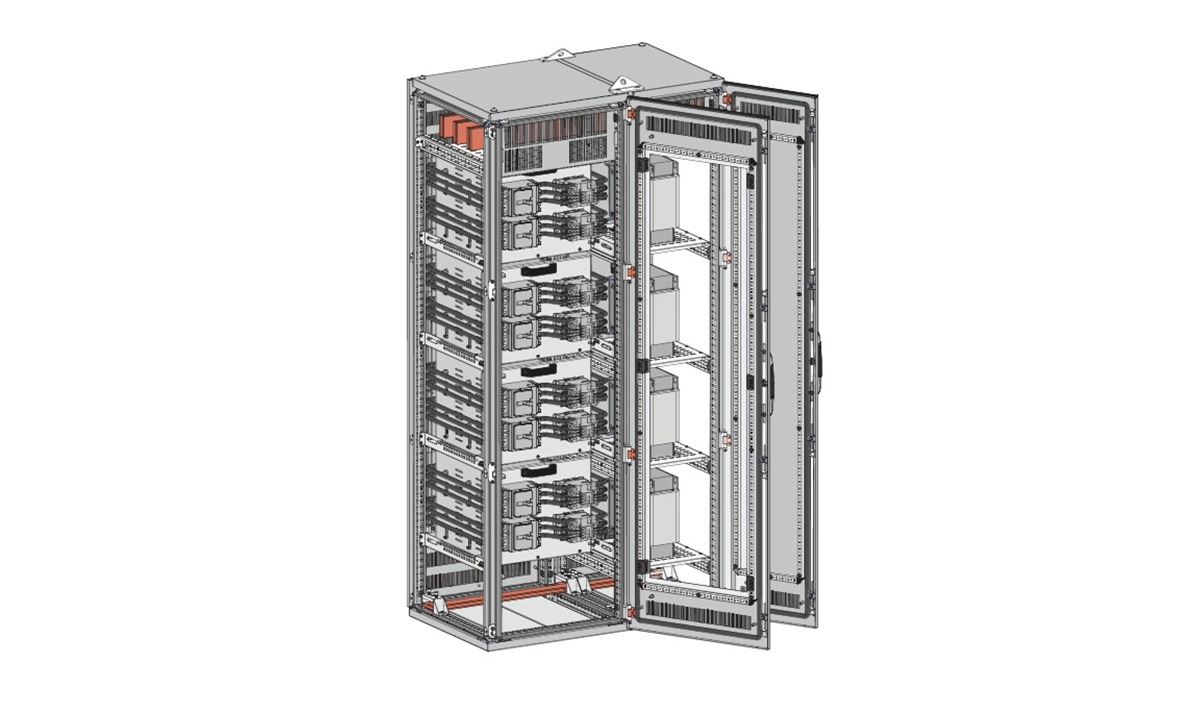

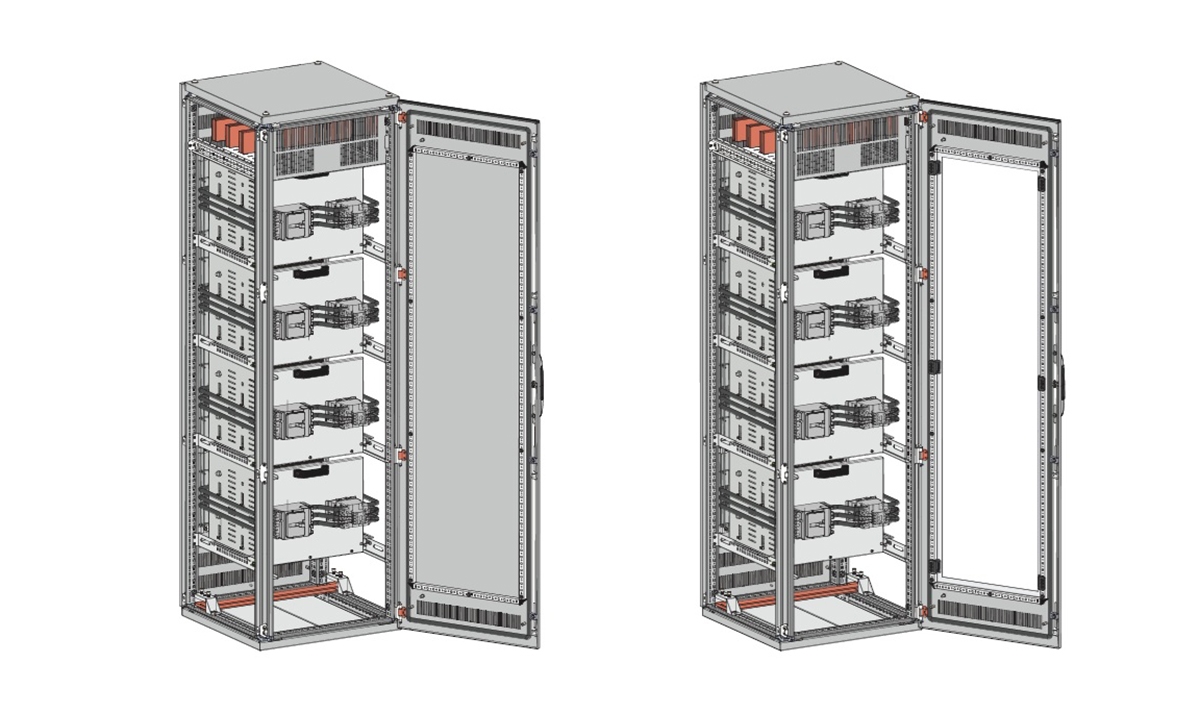

- Freestanding Indoor Power Distribution Switchboard – Power Factor Corretion and Harmonics Module
- Suitable for top main busbar connections; module configuration with sliding stages
- Segregation: Form 1 and Form 2
- Standards Compliance: IEC 61439-1 & 2
- Short-Time Withstand Current (Icw): Up to 85kA (1s), up to 65kA (3s)
- Rated Voltages: Ue: 690V AC, Ui: 1000V AC, Uimp: 12kV
- Ingress Protection: IP 2XD (without filter protection), IP 53D (with filter protection)
Materials:
Panels, Rear Panel, Top Panel: DC-01 Sheet Steel
Body, Base Plates: DX51 Galvanized Sheet Steel
Surface Finish:
Nano coating over RAL 7035 with powder coating applied to body, panels, rear and top panels
Supply Includes:
Selection guide and order codes available under the “More Information” section
Options:
Plinth, Side Panels, Baying Kit, and other accessories
