Compatibility:
All Types of Enclosures
Description:

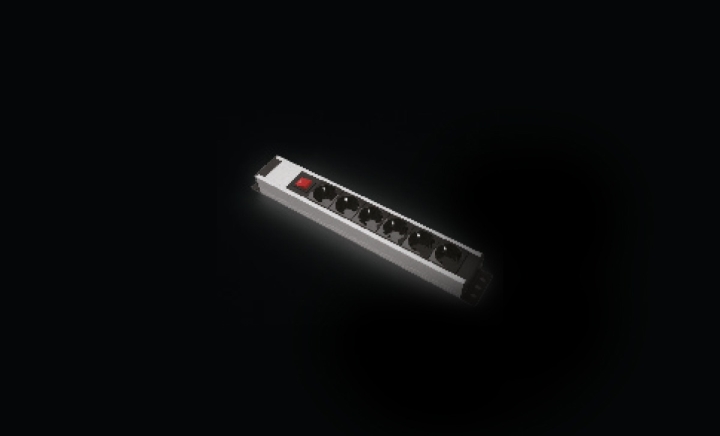

Used for recessed socket outlet and power distribution (PDU) inside enclosures and cabinets. 230V AC, 10/16A, grounded Type-F sockets. Equipped with an ON/OFF switch. Modular sockets housed in an aluminium body, screw-mounted, 19" compatible. Compliant with IEC 62208 standard.
Related Size:
Compatible with all enclosure sizes
Product Content:
1 pc power distribution unit and 2 m 3×1.5 mm² TTR cable with plug
| | | | Product Code | Socket Type | Socket Quantity | 19" Compliance |
|---|
| 2D DXF | 3D STEP | 990.216 | Network | 6 | * |
| 2D DXF | 3D STEP | 990.217 | Network | 7 | Yes |
| 2D DXF | 3D STEP | 990.218 | Network | 8 | * |
| 2D DXF | 3D STEP | 990.219 | Network | 9 | * |
| 2D DXF | 3D STEP | 990.220 | UPS | 6 | * |
| 2D DXF | 3D STEP | 990.221 | UPS | 7 | Yes |
| 2D DXF | 3D STEP | 990.222 | UPS | 8 | * |
| 2D DXF | 3D STEP | 990.223 | UPS | 9 | * |
