Compatibility:
DM-M and DM-L panels
Description:

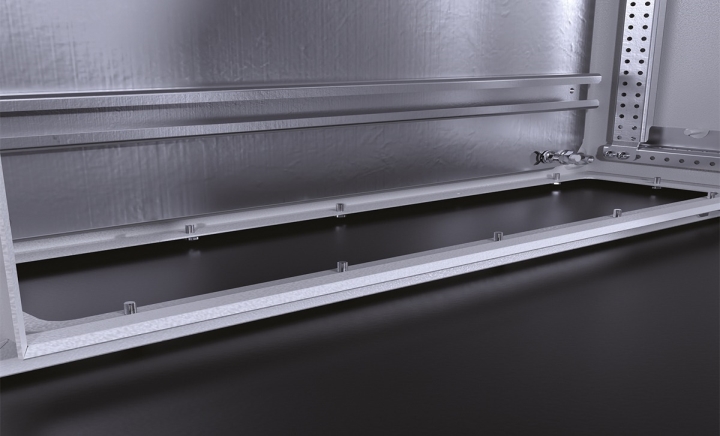

Used for mounting cable clamps. Can be installed on panel mounting plates or rail spacers. Compliant with IEC 62208 standards.
Relevant Dimension:
Panel Width (W)
Material:
DX51 Galvanized Sheet
Surface Treatment:
Untreated surface
Product Content:
1 rail and fastening bolts
Note:
For panels with widths of 1000mm or 1200mm, 2 pieces of 417 or 517 rails can be used.
| | | | Product Code | Width(W) | Rail Size mm |
|---|
| 2D DXF | 3D STEP | 973.940 | 400 | 317 |
| 2D DXF | 3D STEP | 973.950 | 500 | 417 |
| 2D DXF | 3D STEP | 973.960 | 600 | 517 |
| 2D DXF | 3D STEP | 973.980 | 800 | 717 |
