Compatibility:

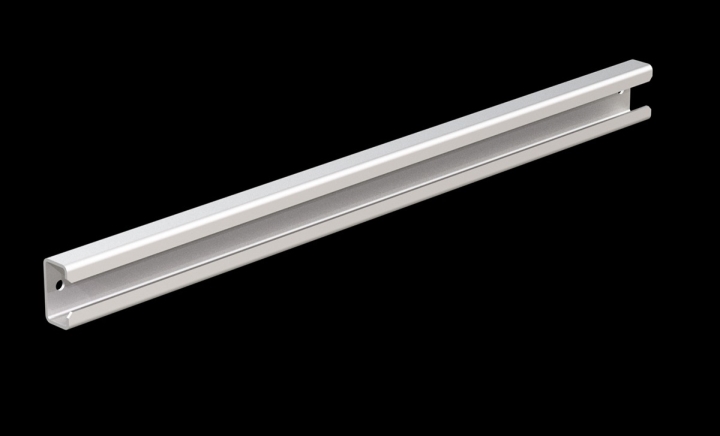

All Cable Fixing Rails (C Type)
Description:
Clamping brackets used to secure cables at panel entries and reduce tension. Clamps are mounted on C-type rails. Compliant with IEC 62208 standards.
Relevant Dimension:
Compatible with all panel sizes
Material:
DC01 DKP Sheet, Polyamide base plastic
Surface Treatment:
Zinc plated
Product Content:
8–14 mm cable diameter = 30 pieces
14–20 mm cable diameter = 20 pieces
20–28 mm cable diameter = 15 pieces
Required:
Cable Fixing Rail (C Type) suitable for the panel width is required.
| | | | Product Code | Cable Diameter | Quantity |
|---|
| 2D DXF | 3D STEP | 998.400 | 8 - 14 | 30 |
| 2D DXF | 3D STEP | 998.600 | 14 - 20 | 20 |
| 2D DXF | 3D STEP | 998.700 | 20 - 28 | 15 |
