Compatibility:
General Use
Description:

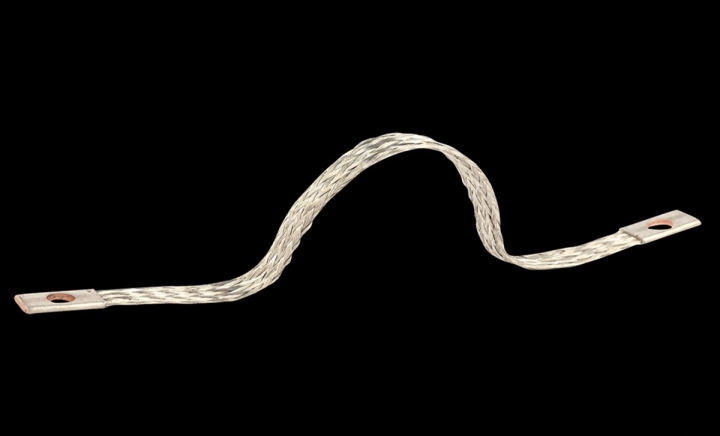

Pre-prepared grounding cables suitable for different mounting locations or cross-section structures.
Relevant Dimension:
Compatible with all panel sizes
Material:
CU (Copper)
Surface Treatment:
Cable insulation / Tin plated
Product Content:
Quantities specified next to the reference numbers
| | | | Product Code | Model | Quantity | Cross-cut x Length |
|---|
| 2D DXF | 3D STEP | 991.200 | Braided - M6 | 10 | 12 x 3 x 163mm |
| 2D DXF | 3D STEP | 991.201 | Braided - M6 | 10 | 12 x 3 x 260mm |
| 2D DXF | 3D STEP | 991.202 | Braided - M8 | 5 | 15 x 3 x 260mm |
| 2D DXF | 3D STEP | 991.203 | Braided - M6 | 1 | 12 x 3 x 260mm |
| 2D DXF | 3D STEP | 991.204 | Braided - M8 | 1 | 15 x 3 x 260mm |
| 2D DXF | 3D STEP | 991.205 | Braided - M6 | 1 | 12 x 3 x 163mm |
| 2D DXF | 3D STEP | 991.208 | Yellow-Green Cable-M8 | 5 | 16mm² x 210mm |
| 2D DXF | 3D STEP | 991.209 | Yellow-Green Cable-M8 | 5 | 16mm² x 260mm |
| 2D DXF | 3D STEP | 991.210 | Yellow-Green Cable-M8 | 5 | 16mm² x 310mm |
