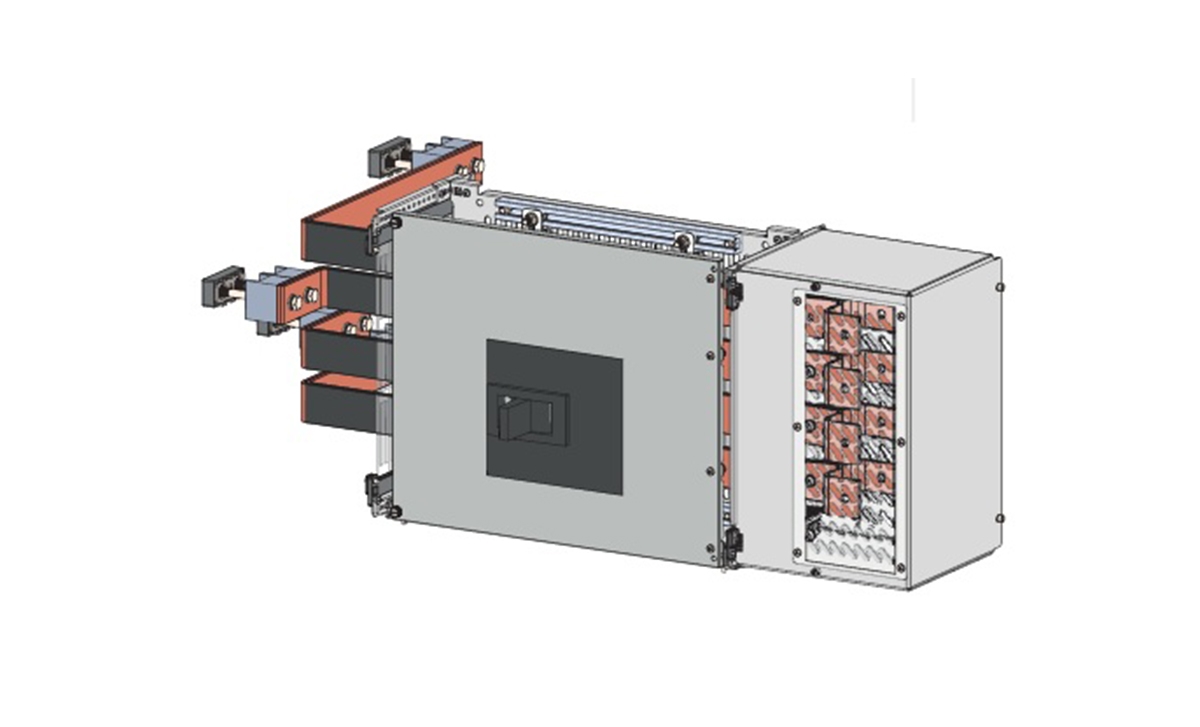

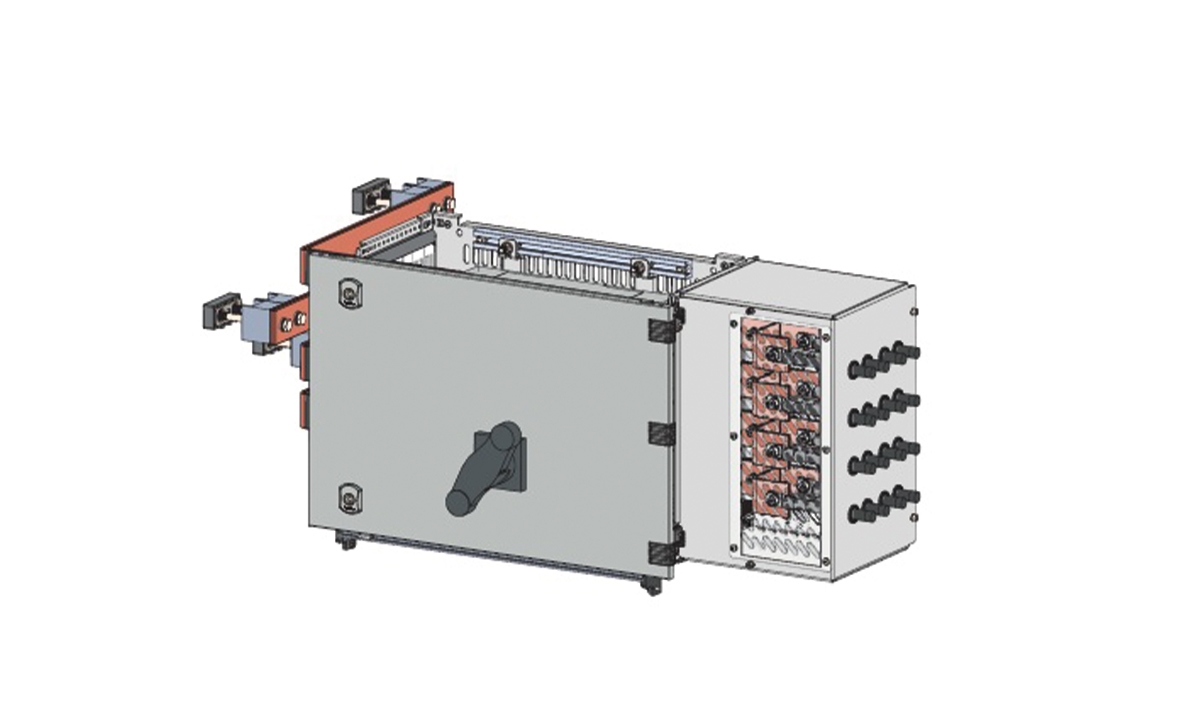

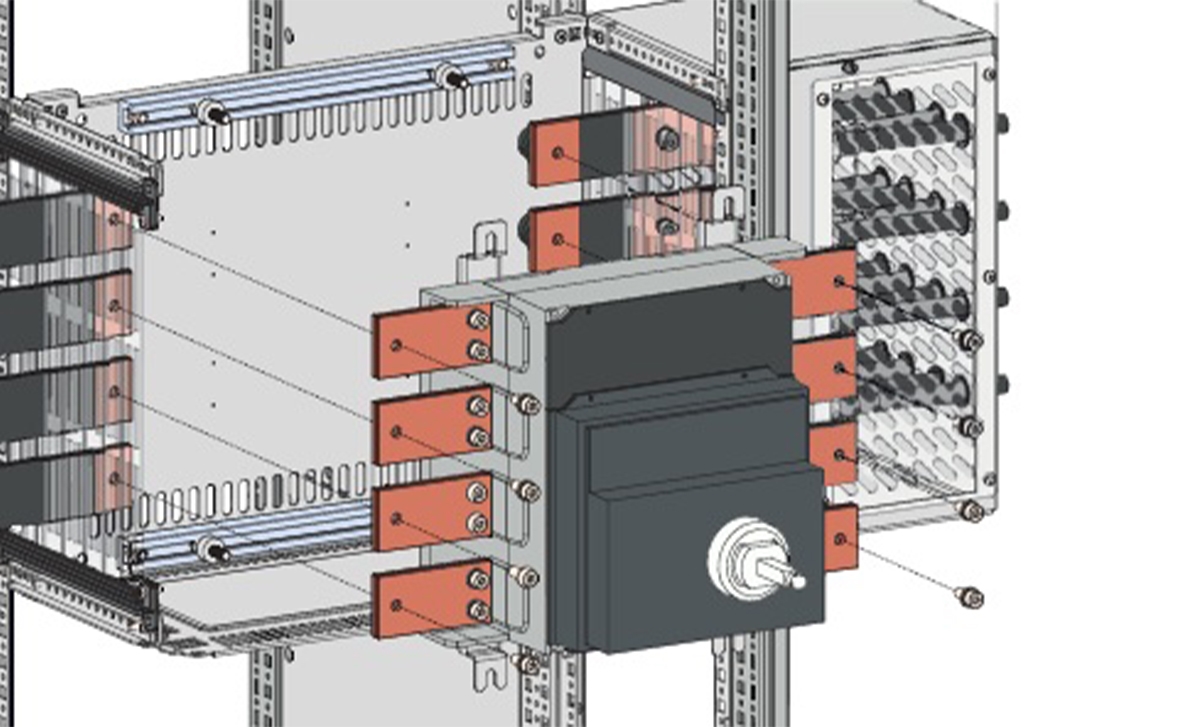

- MCCB Feeder Casettes Compatible with PDS Power Distribution Feeder Modules
- Applications: Easily removable, quick-change mounting system up to 1600A
- Segregation: Form 1 and Form 4b
- Standards Compliance: IEC 61439-1 & 2
- Short-Time Withstand Current (Icw): Up to 85kA (1s), up to 65kA (3s)
- Rated Voltages: Ue: 690V AC, Ui: 1000V AC, Uimp: 12kV
Materials:
Panels: DC-01 Sheet Steel
Form dividers, Base mounting plates: DX51 Galvanized Sheet Steel
Surface Finish:
Panels: Nano coating over RAL 7035 with powder coating applied
Supply Includes:
Selection guide and order codes available under the “More Information” section
Product Technical Information
