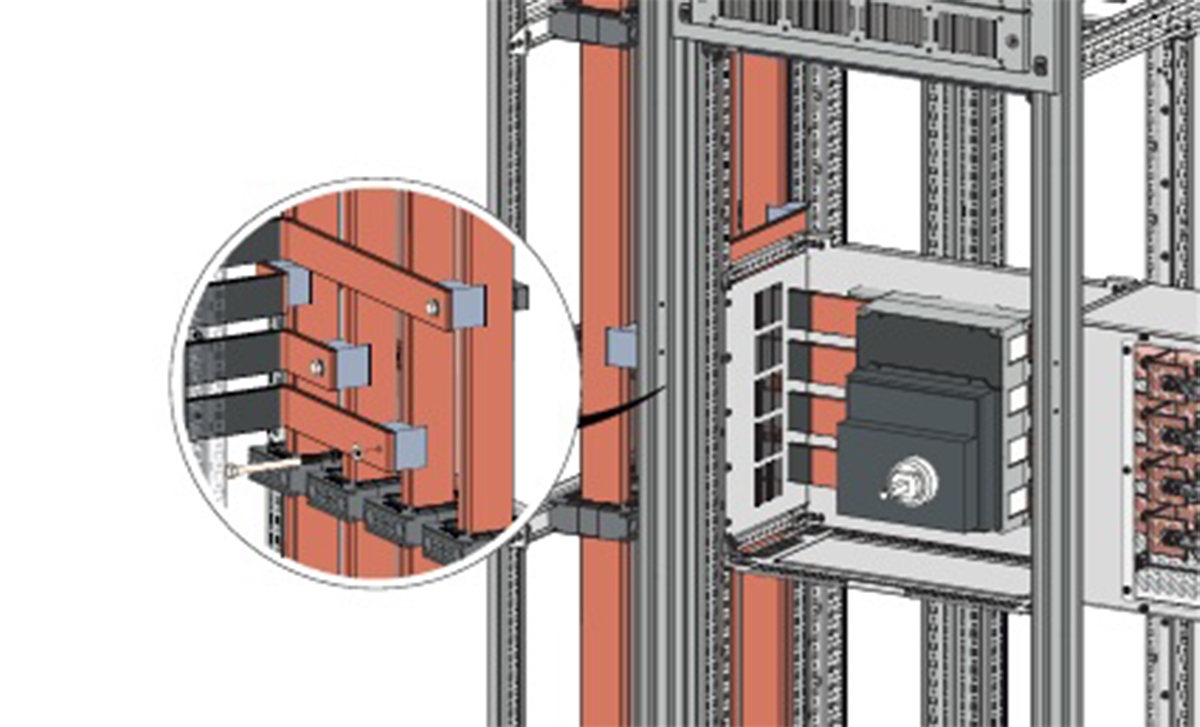

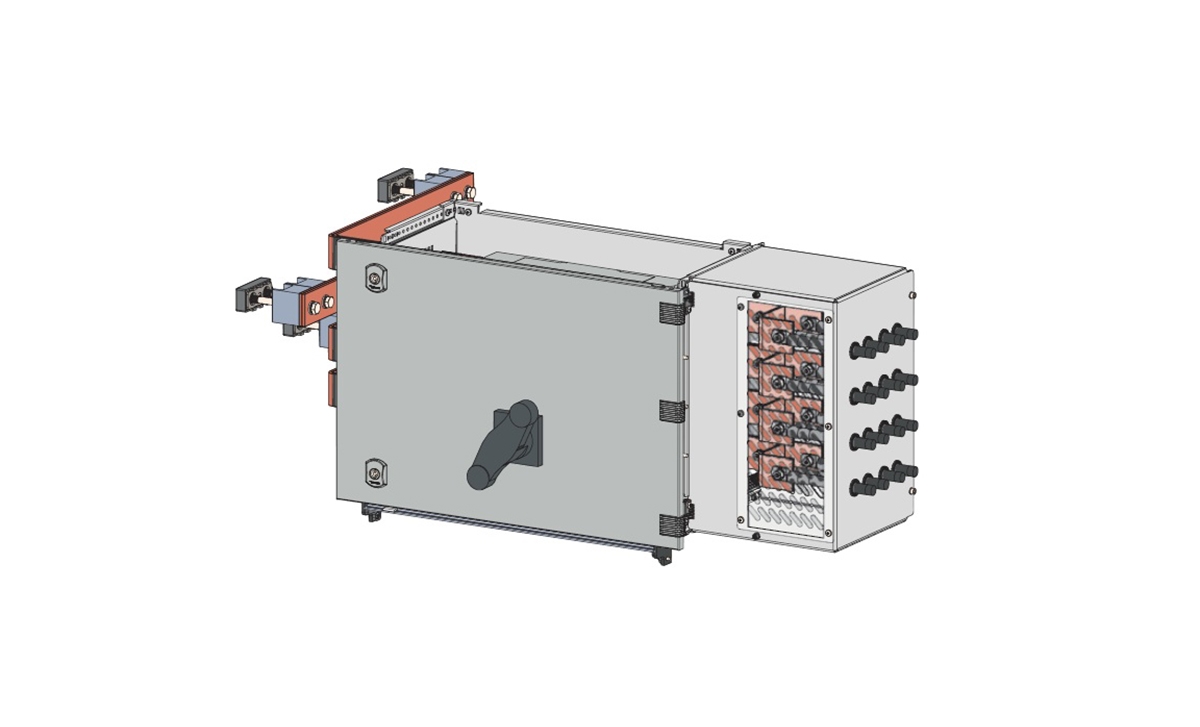

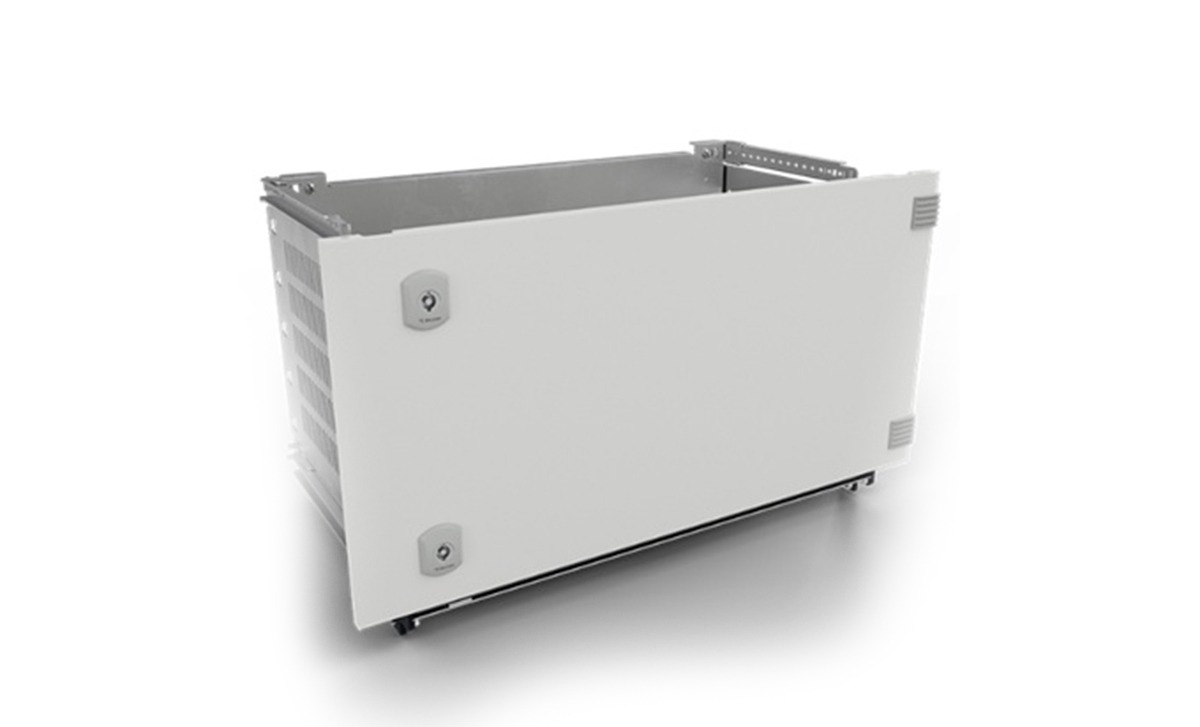

• Fixed Feeder Casettes Compatible with PDS Power Distribution Feeder Modules
• Applications: Up to 1600A for MCCBs, fixed-type MCCs , VFDs, and general-purpose applications
• Segregation: Form 1 and Form 4b
• Standards Compliance: IEC 61439-1 & 2
• Short-Time Withstand Current (Icw): Up to 85kA (1s), up to 65kA (3s)
• Rated Voltages: Ue: 690V AC, Ui: 1000V AC, Uimp: 12kV

Materials:
Panels: DC-01 Sheet Steel
Form dividers, Base mounting plates: DX51 Galvanized Sheet Steel

Surface Finish:
Panels: Nano coating over RAL 7035 with powder coating applied

Supply Includes:
Selection guide and order codes available under the “More Information” section
