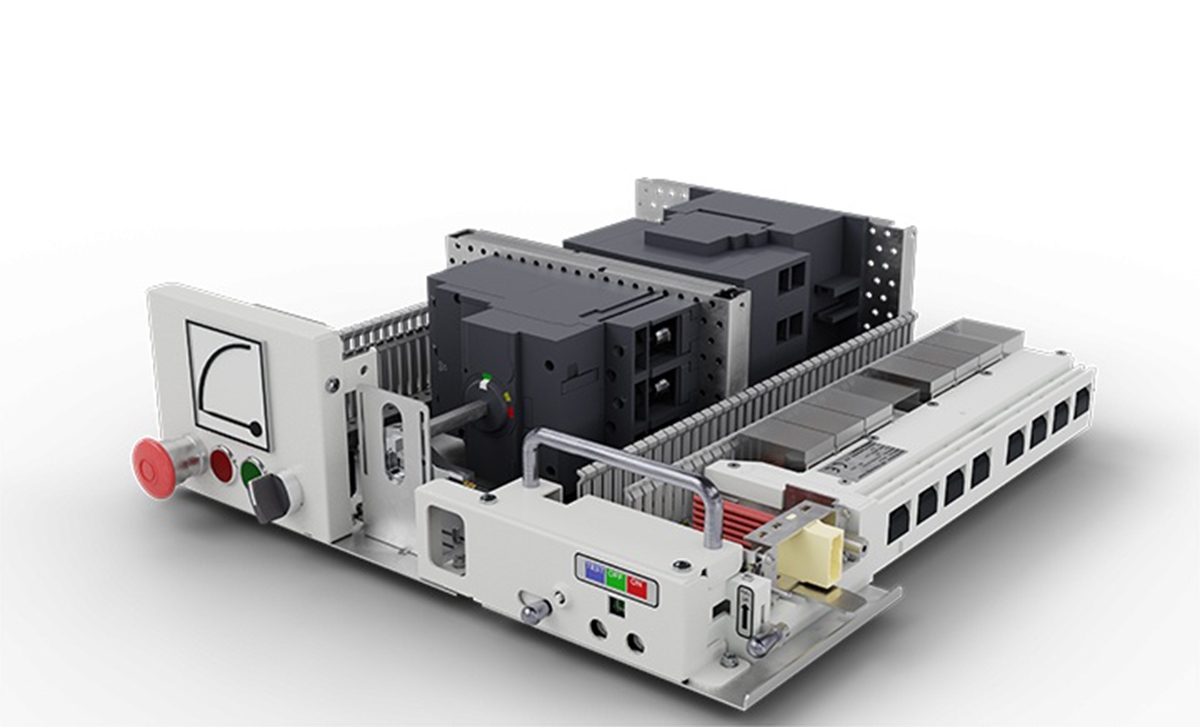

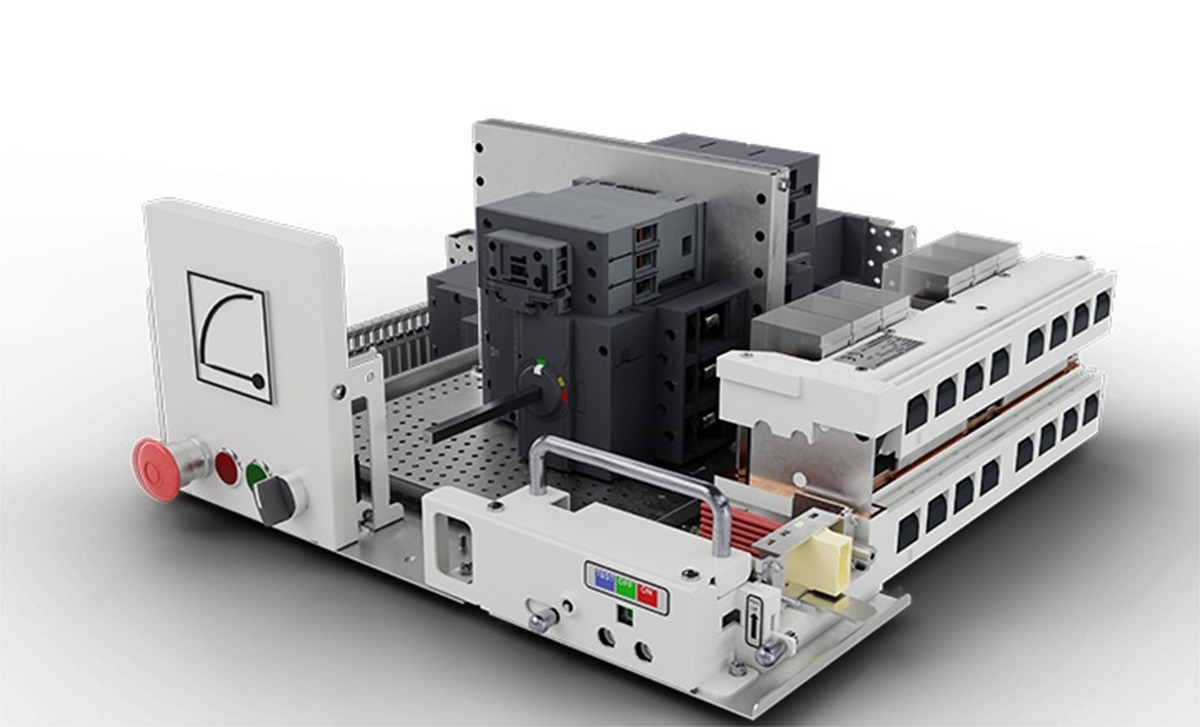

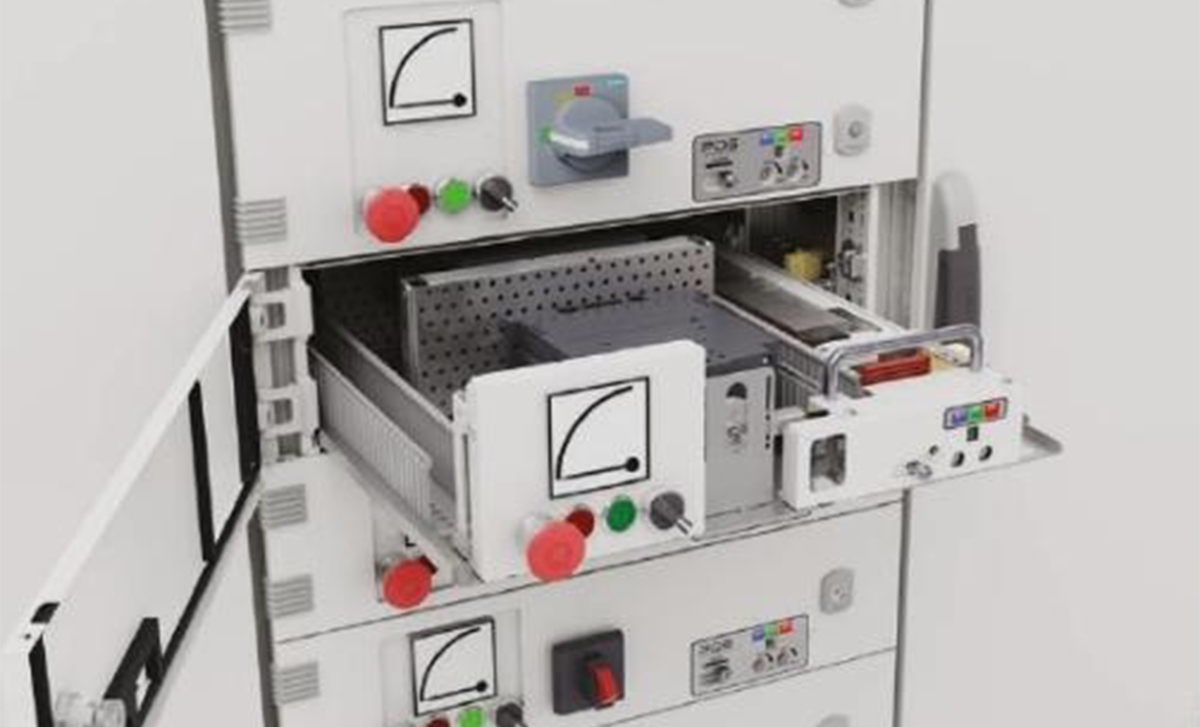

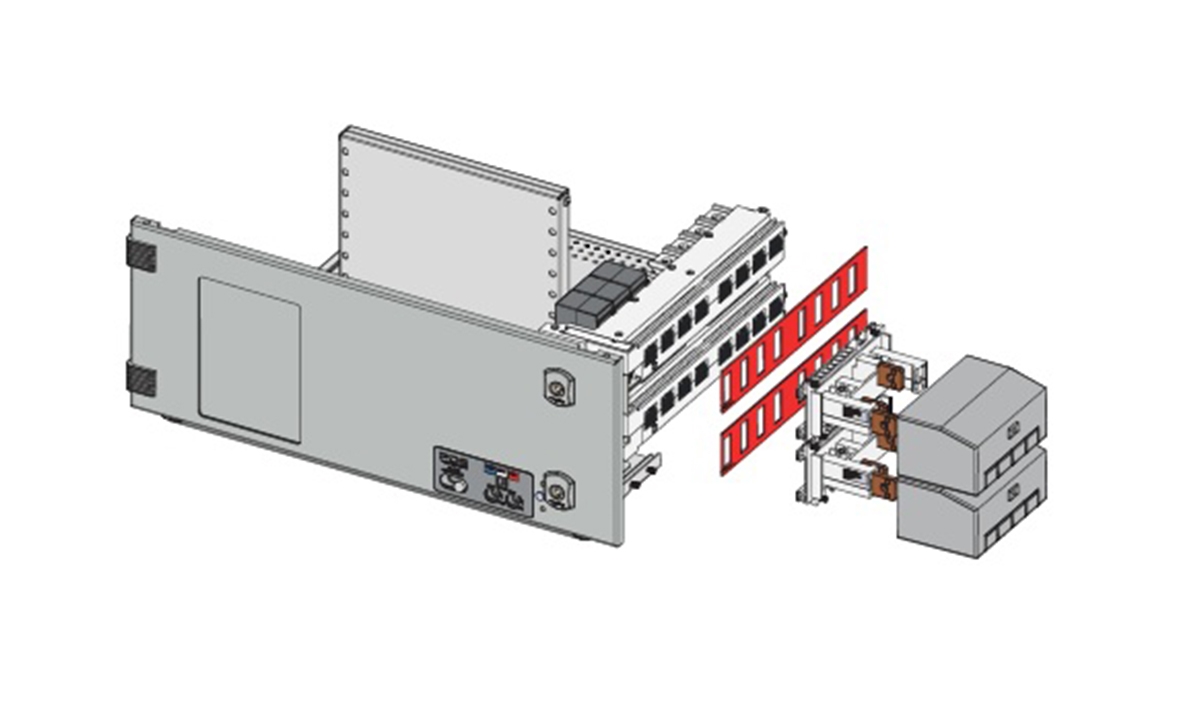

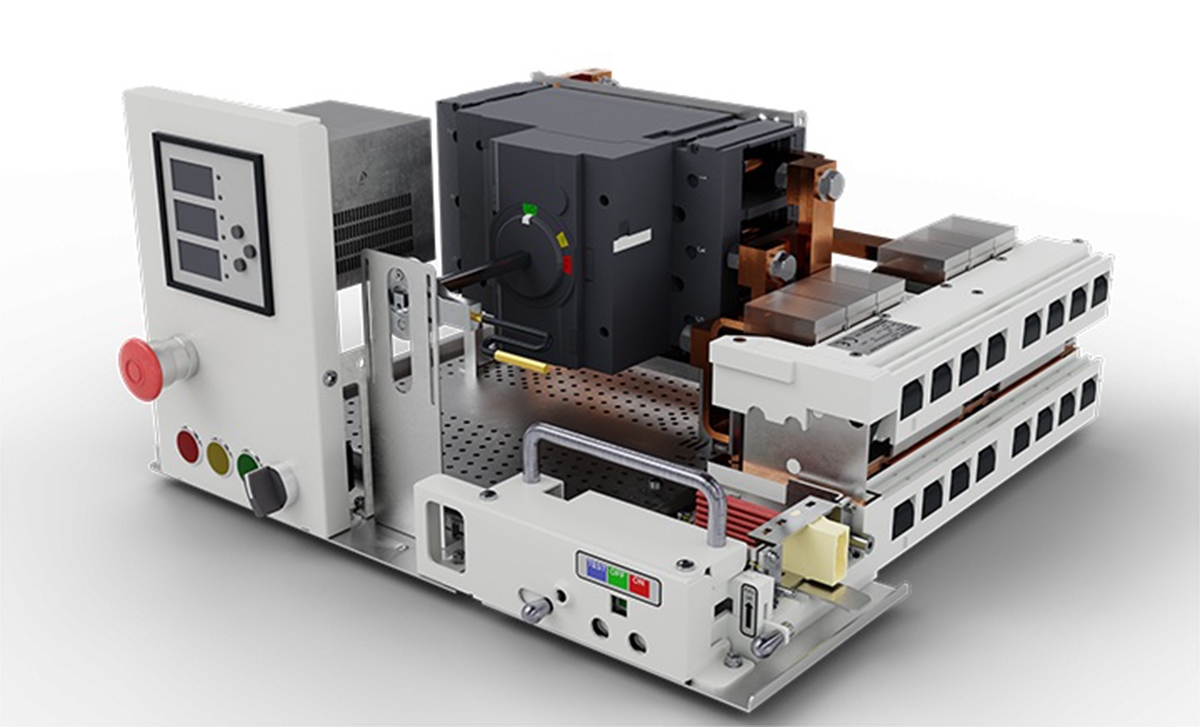

- Drawable Feeder Casettes Compatible with PDS Drawable-Type Feeder Modules
- Applications: For motor control: Direct On-Line (DOL) and Star-Delta starting, and for power distribution: MCCB applications
- Segregation: Form 4a and Form 4b
- Standards Compliance: IEC 61439-1 & 2
- Short-Time Withstand Current (Icw): Up to 60kA (1s)
- Rated Voltages: Ue: 690V AC, Ui: 800V AC, Uimp: 8kV
Materials:
Panels: DC-01 Sheet Steel
Form dividers, Base mounting plates: DX51 Galvanized Sheet Steel
Surface Finish:
Panels: Nano coating over RAL 7035 with powder coating applied
Supply Includes:
Selection guide and order codes available under the “More Information” section
