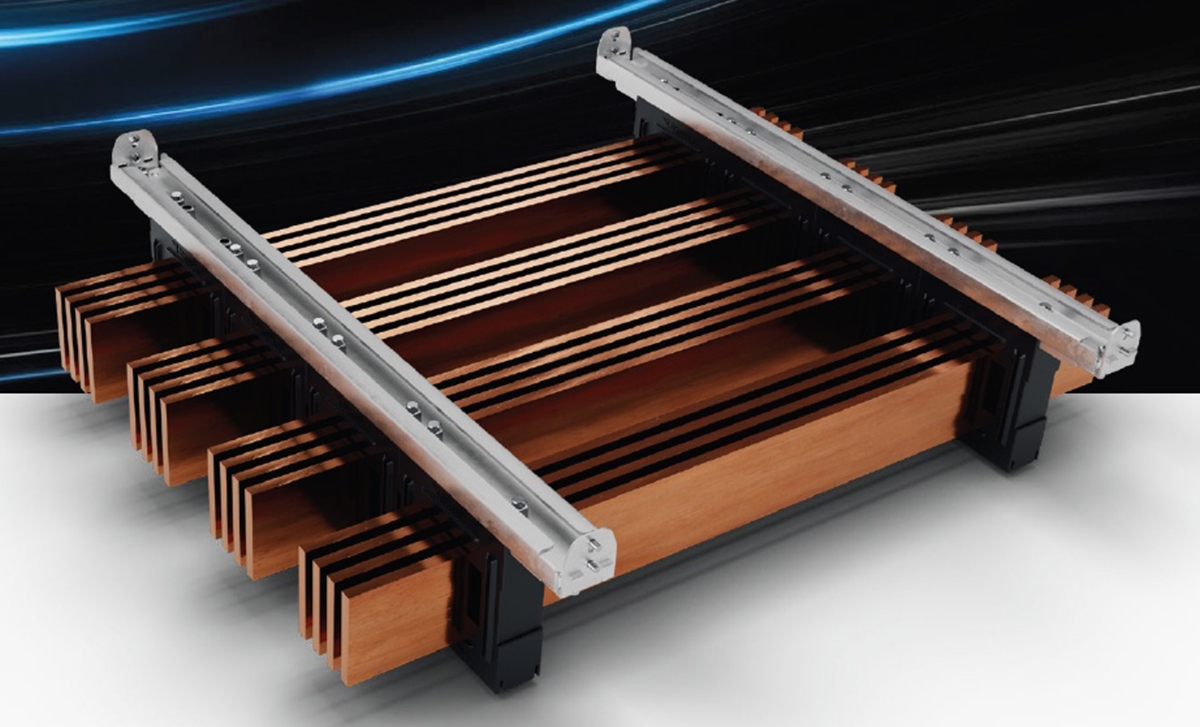

• Suitable for use with Flat Busbars.
• Can be used with widths of 40mm / 50mm / 60mm / 80mm and cross-sections of 5mm and 10mm.
• Two options per pole: 2 or 4 busbars.
• Compliant with IEC 61439-1 & 2 and UL508A standards.
• Fire resistance rating V0 according to UL 94 standard.
• Short-circuit withstand: Icw up to 85kA, Ipk up to 176kA.
• Rated voltage: Ue 690V AC, Ui 1000V AC, Impulse voltage Uimp 12kV.

Material:
Glass Fiber Reinforced Polyamide (PA 6.6)

Supply Includes:
Specified in the "Dimensions / Order Codes" section.

Required:
Teos Busbar Rail Kit for installation.
