- Suitable for use with the Teos enclosure and PDS Main Busbar Holders.
- Compatible with 3-pole and 4-pole installation. The support has standard mounting points for holder attachment.
- Compliant with IEC 61439-1&2 and UL508A standards.
- Short-circuit withstand rating: Icw up to 85kA, Ipk up to 176kA.
Material:
3.00mm DC-01 Sheet Steel (2.00mm slot channel)
Surface Finish:
Cr+3 Zinc Plating
Supply Includes:
2 rails, 4 mounting brackets, and connection parts
| | |
|---|

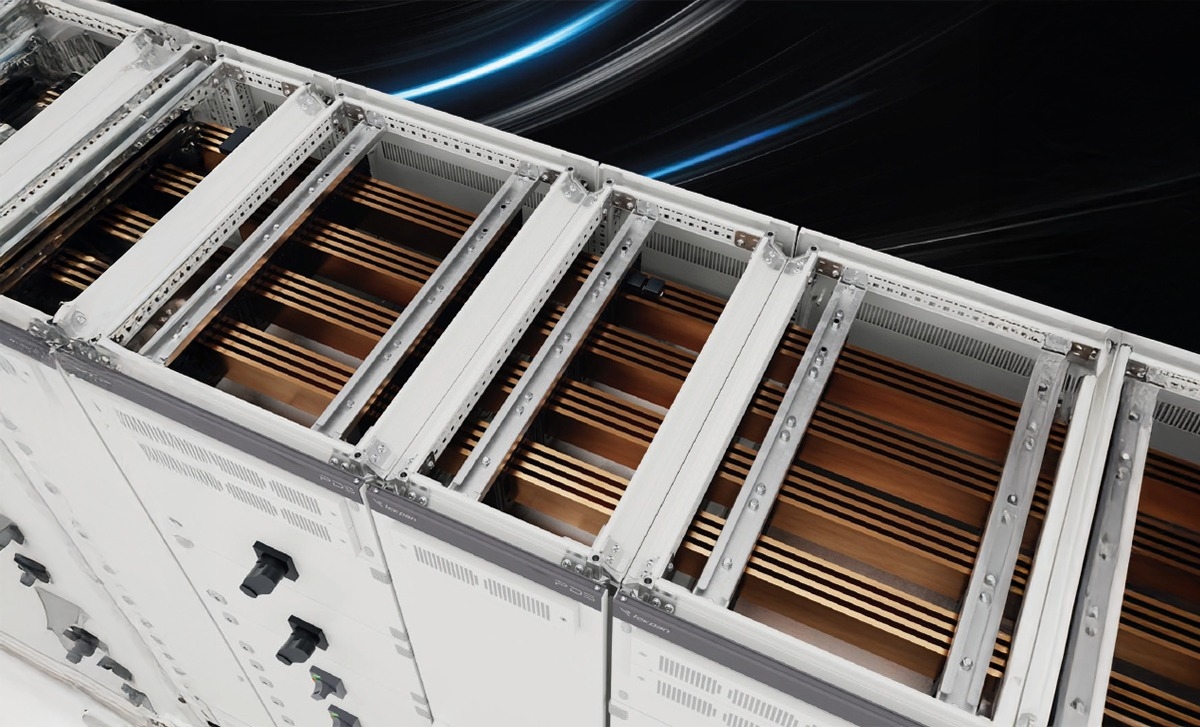

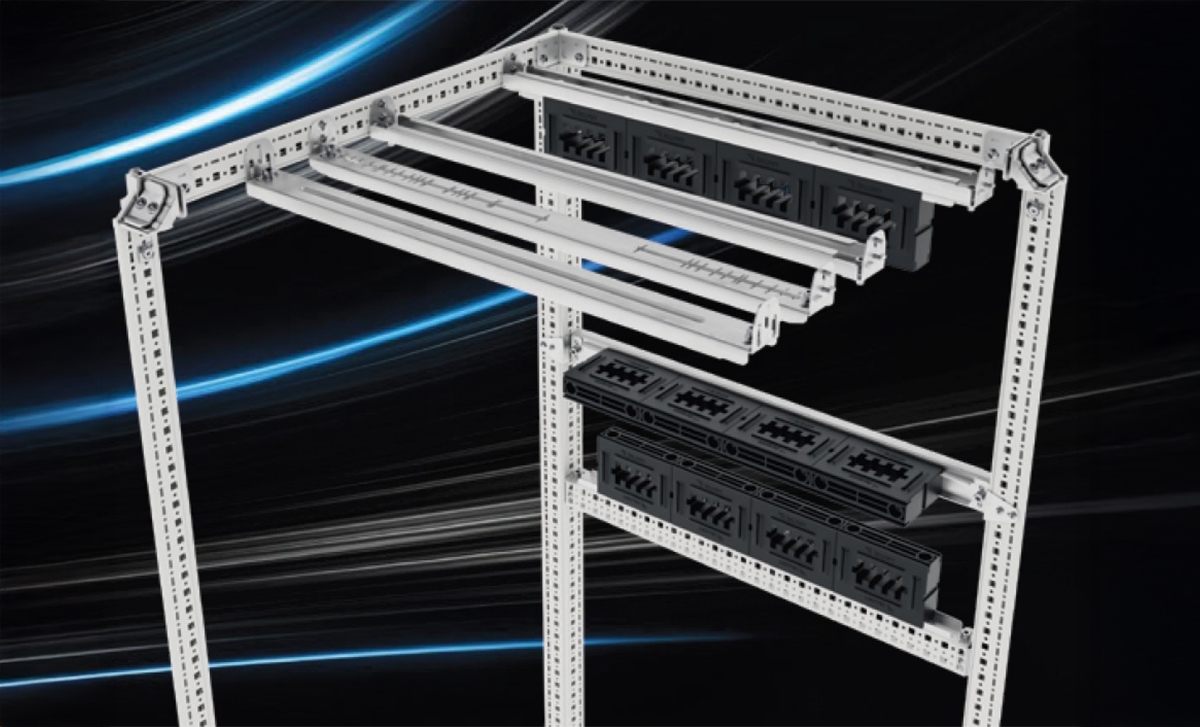

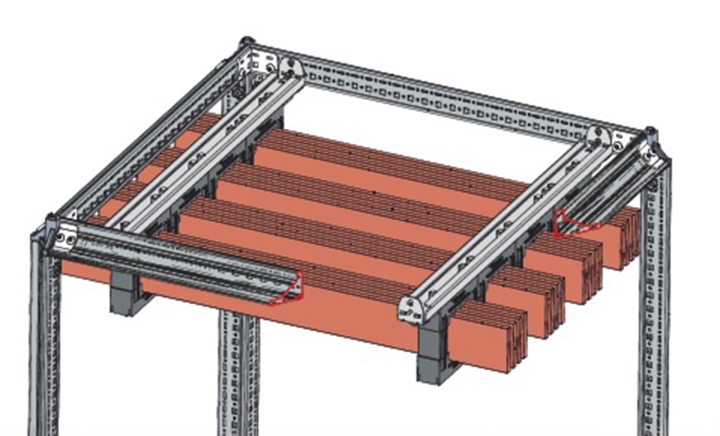

Teos Top Busbar Rail Kit (Upper Mounting)
 | | | | | Product Code | Packs Of | Busbar Type | Enclsoure Depth |
|---|
| 2D DXF | 3D STEP | 1010.160 | 2 | 2'li Bara , 3/4 Kutup | 600mm | | 2D DXF | 3D STEP | 1010.180 | 2 | 4'lü Bara , 3/4 Kutup | 800mm | | 2D DXF | 3D STEP | 1010.182 | 2 | 2'li Bara , 3/4 Kutup | 800mm |
|
